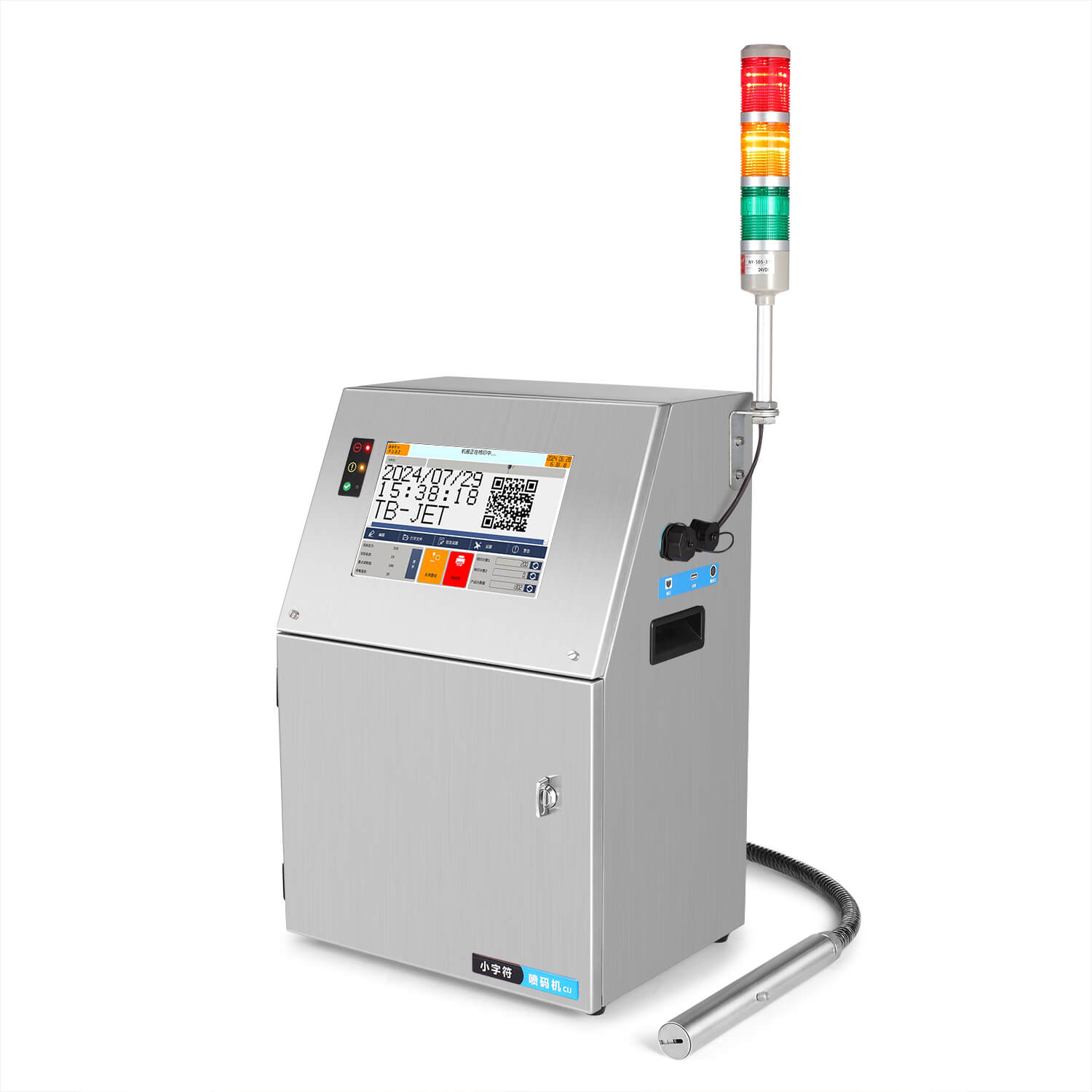

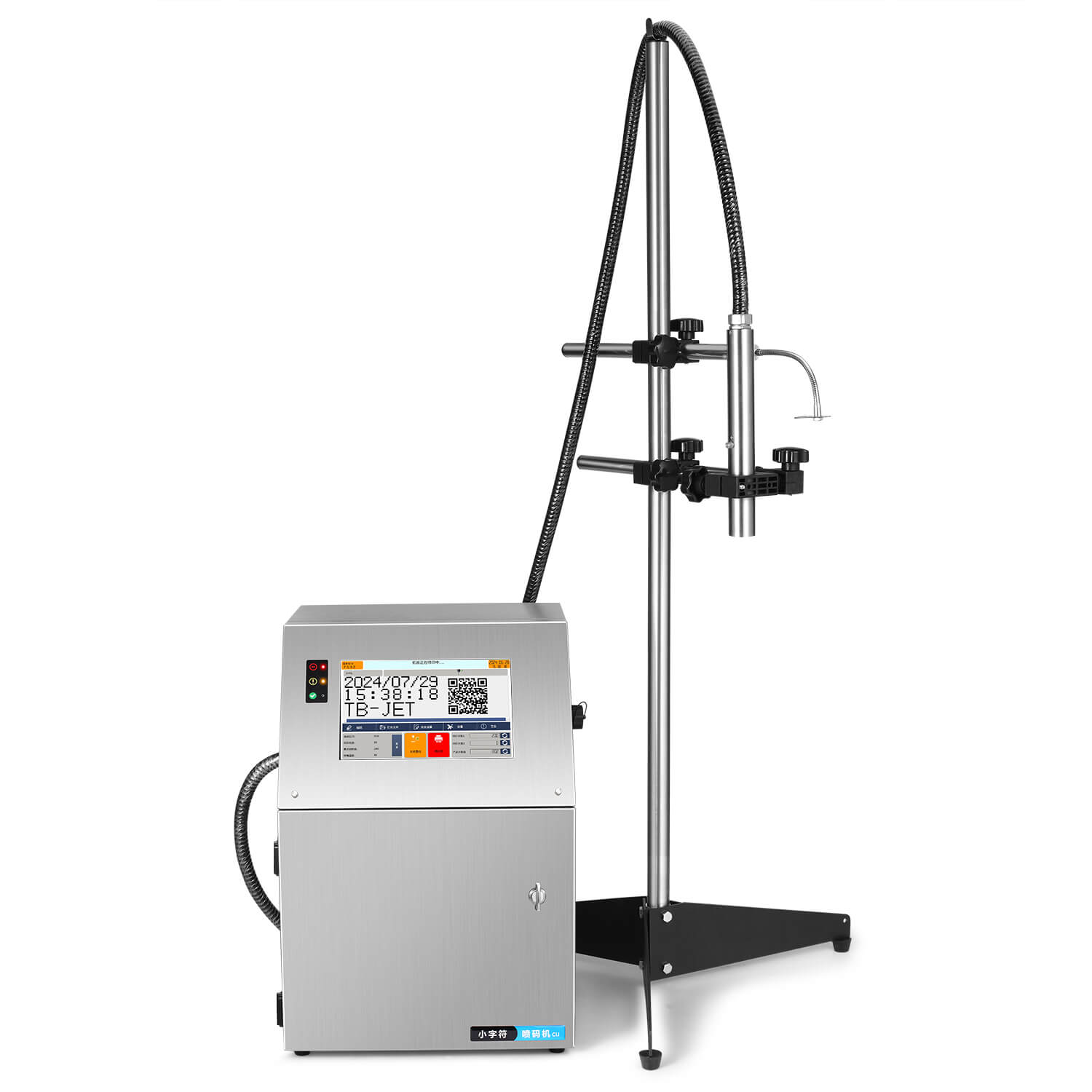

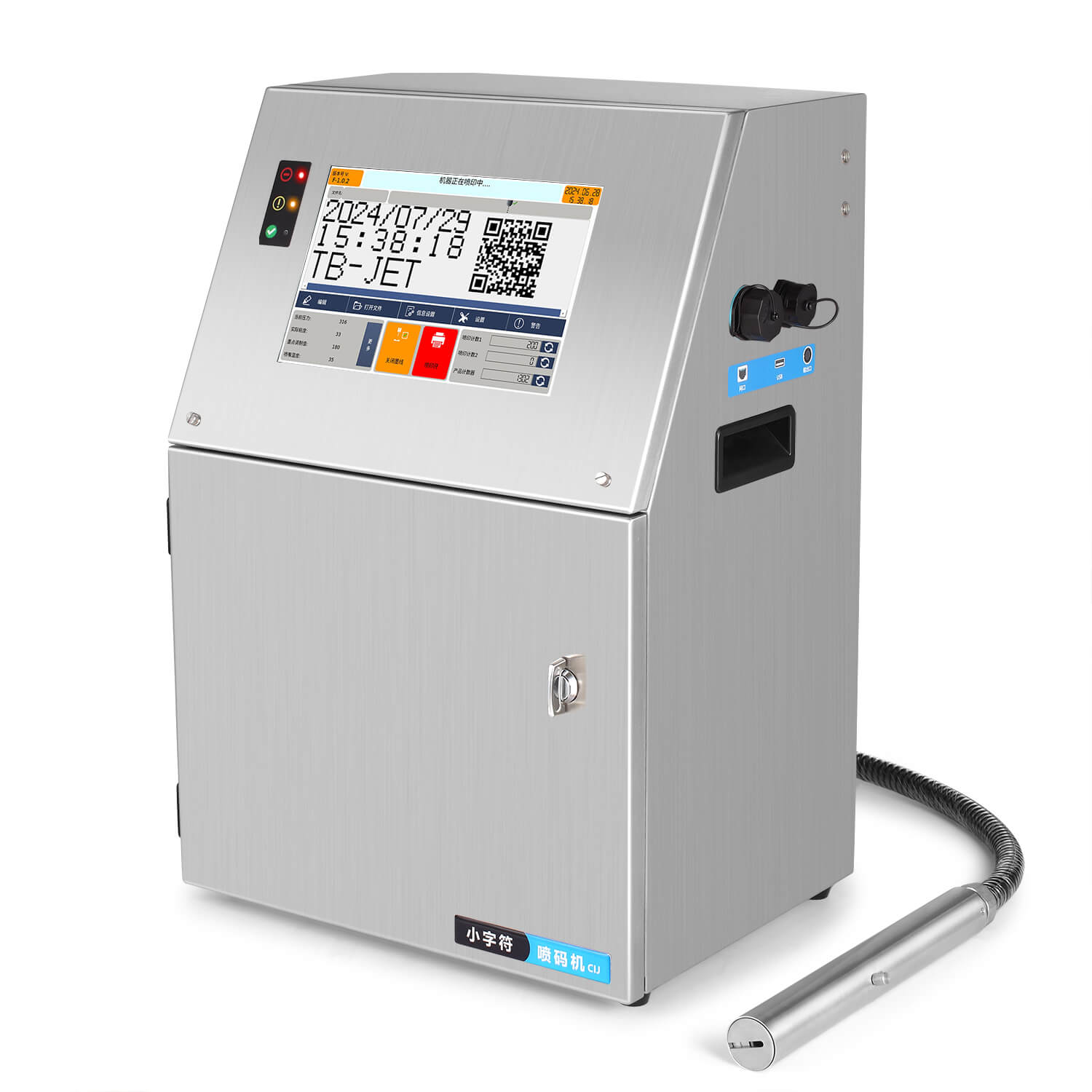

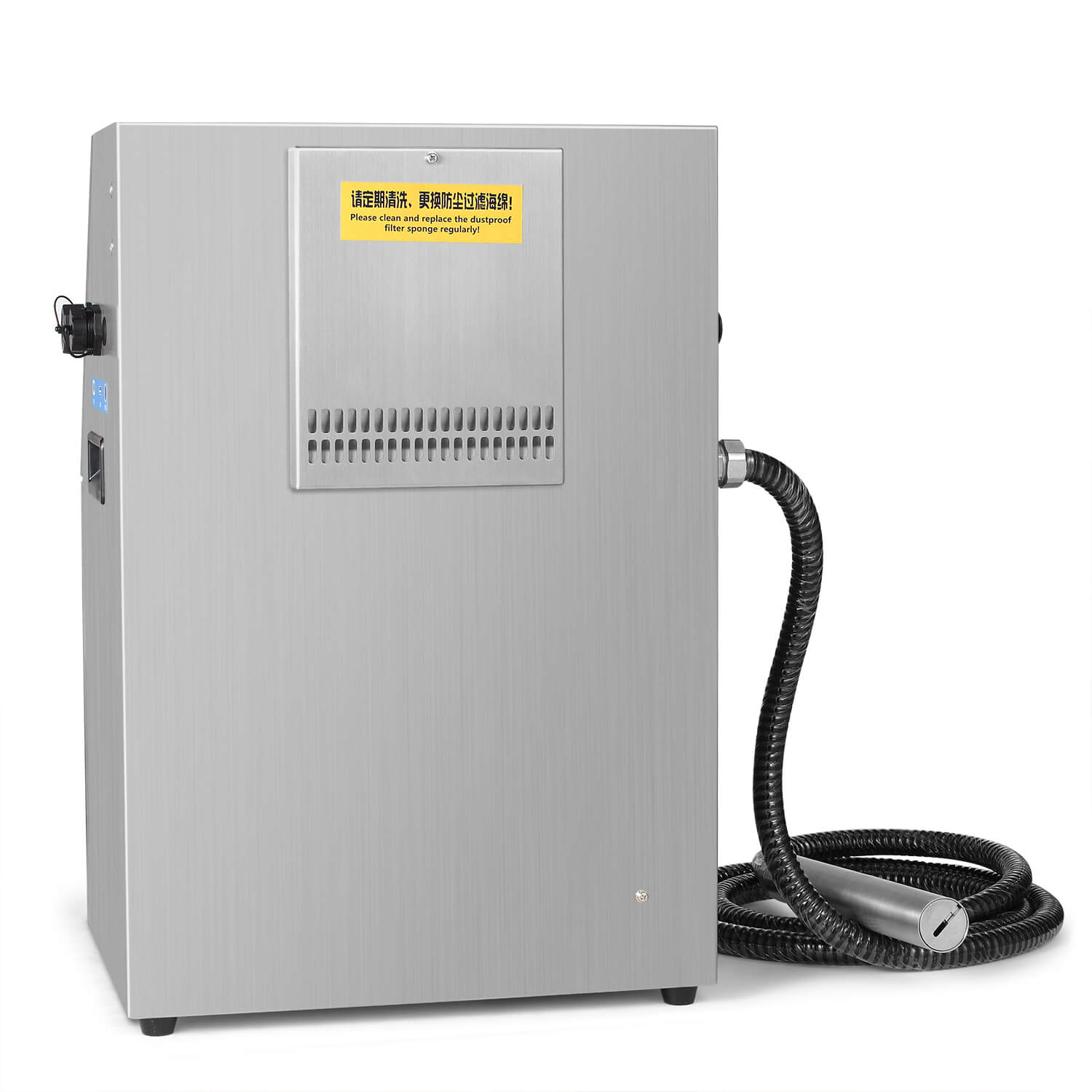

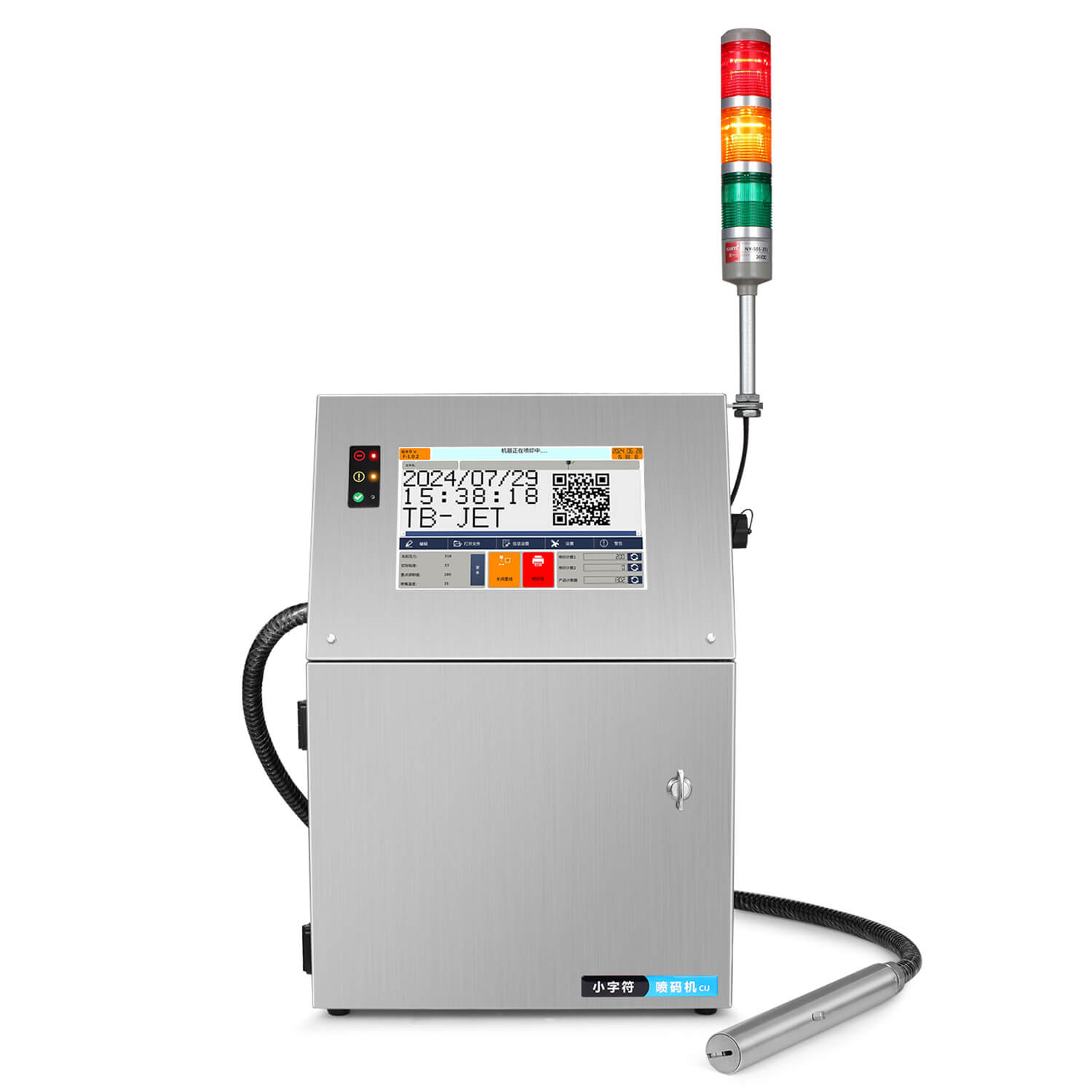

TB-JET 100 Automatic Small-Character Inkjet Printer

Black Ink Coding White Ink Coding

Price:

Weight: 45Kg

Contact

Description

Applied to coding on various materials, TB-JET 100 Automatic Small-Character inkjet printer provide you with superior print quality and safe& reliable solutions in tough and varied environments.

TB-JET 100 is a new series of continuous small – character inkjet printers. It is specifically designed for high – quality product printing and for increasing production line speed. The entire machine body is made of stainless steel, which makes it sturdy and durable. It can operate stably and reliably in harsh production environments, thus ensuring the efficiency of the production line. It is equipped with a 10.1″ color capacitive touch – screen, and the operation interface is intuitive and user – friendly. Even beginners can quickly get started.

Features:

Visual panel & Simple Usability
An easy-to-operate 10.1-inch tablet touchscreen display that is intuitive for you and can be translated into your native language.

Customize the interface using the built-in wizard and access guided video tutorials for common printer tasks.
High-resolution Inkjet Printing
Rapidly prints clean and clear codes
SERVICE-FREE OPERATION
No need for traditional preventive maintenance. Use remote diagnosis, event alarms, and remote monitoring to avoid or solve problems.
Automatic nozzle cleaning

Printing Parameters

Standard length of the nozzle main pipe	2.5 meters (customizable)
Nozzle specifications	40u, 50u, 55u, 60u (standard configuration), 70u.
Printing height	18mm (Selected according to font dot matrix)
Printing distance	5mm – 20mm
Number of printing lines	1 – 5 lines
Printing speed:	280 meters per minute (5×5 single line)
Font dot matrix	English: 5×5, 7×5, 9×7, 11×9, 16×12, 24×18, 32×24. Chinese font sizes: 7 – point, 9 – point, 11 – point, 16 – point, 24 – point, 32 – point.
Printing materials	plastics, metals, cartons, boards, pipes, wires, stones, glass, electronic components, automotive parts, industrial chemical packaging, pharmaceutical packaging boxes and bags, food and gift packaging boxes and bags.
Printing content	text, time, date, patterns, serial numbers, dynamic barcodes/QR codes (other content can be added as required).

Machine Parameters

Operating system	Embedded Linux secure operating system
Display screen	10.1 – inch color display, industrial capacitive touch screen.
Communication interfaces	USB, Ethernet port
Protection level	IP55
Power supply parameters	Input 100 – 240VAC, 3A, Frequency: 50/60Hz
Rated power	60W
Chassis material	304 stainless steel
Machine specifications	740mm x 620mm x 480mm
Temperature/humidity range	Ambient temperature: 5°C – 45°C, ambient humidity: 30% – 95%RH (non – condensing).
Machine weight	35KG (excluding nozzle bracket)
External interfaces	Photoelectric sensor, synchronous encoder, alarm light
Package Contents	Inkjet printer * 1

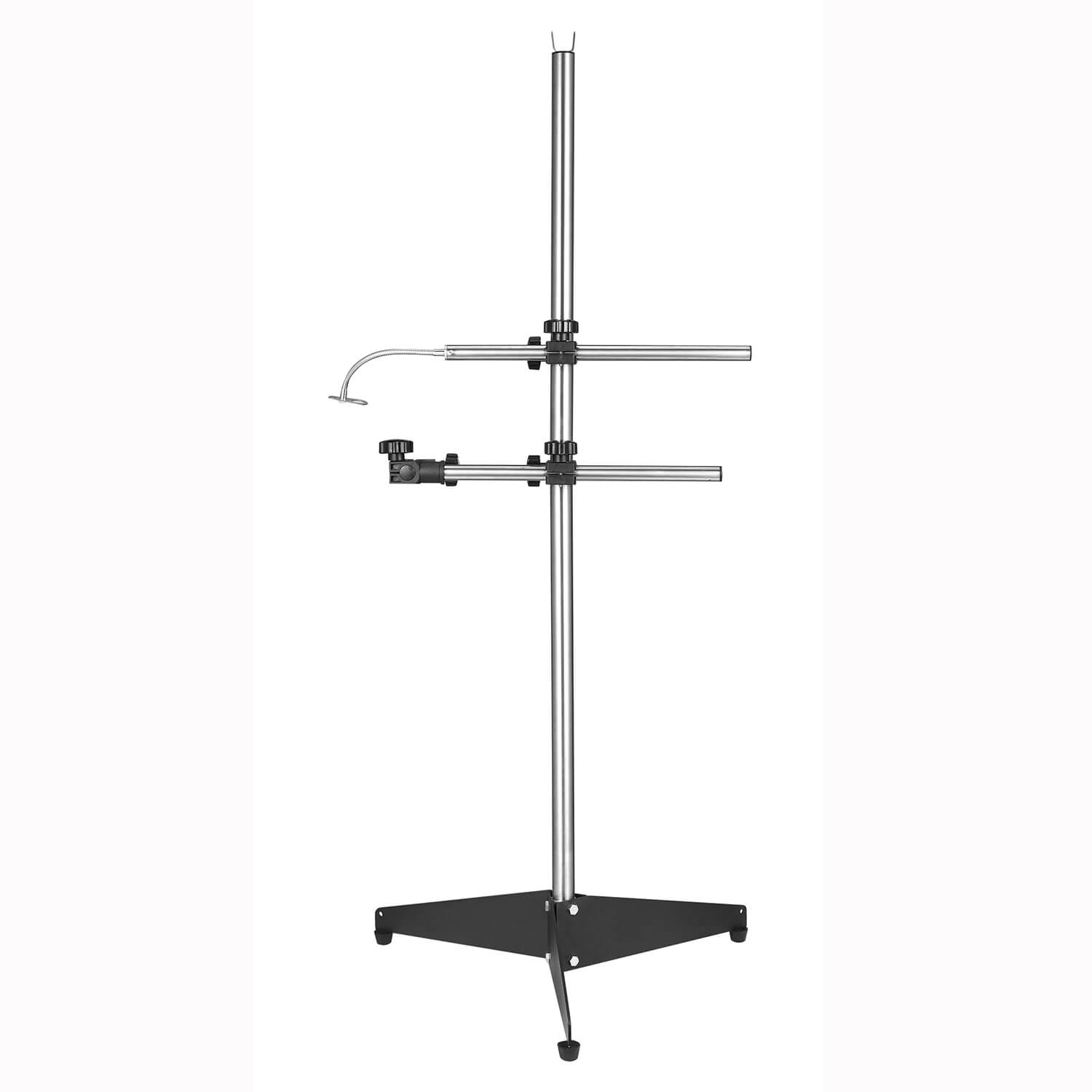

	Print head bracket * 1
	Photoelectric switch * 1
	Cleaning pot * 1
	Rubber suction bulb * 1
	Power cord * 1
	Magnifying glass * 1

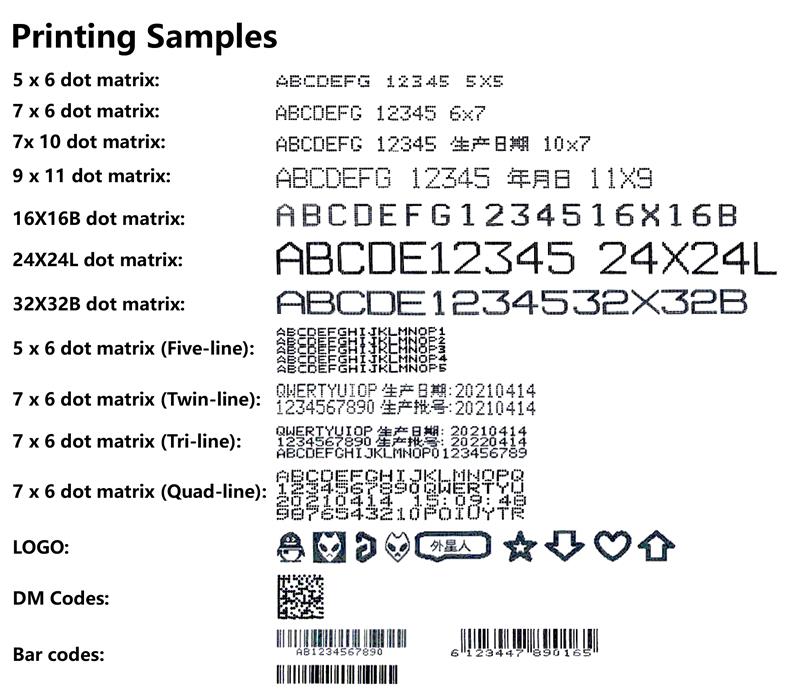

Printing Samples
