G85 series are male thread quick connectors, which are widely applicable for connecting various male threaded port, such as water heaters, instruments and meters, etc. With various actuating methods, it is suitable for a wide range of manual and pneumatic applications.

Male threaded connection solution

---

• Main seal, easy to be replaced
• Level actuated operation, reducing operation intensity
• Diversified driving modes,suitable for different scenarios
• Stainless steel materials, strong and reliable

Features of G85 Series Connectors

• 1. Actuation Modularity

  Offering pneumatic, button valve and level actuated operations to meet the requirements of various applications

• 2. O-Ring Seal

  Simple and reliable, easy to be replaced, low maintenance cost, optional materials, adapt to different applications

• 3. 316 Stainless Steel Front Body

  Excellent mechanical properties, strong, wear-resistant, can greatly extend the service life of connector

• 4. Maximum Pressure rated of 350 Bar

  Satisfying various high pressure testing applications, such as pressure sensors, hydraulic valves, etc.

• 5. High Flow Rate

  Large flow diameter orifice can greatly reduce the loss of flow

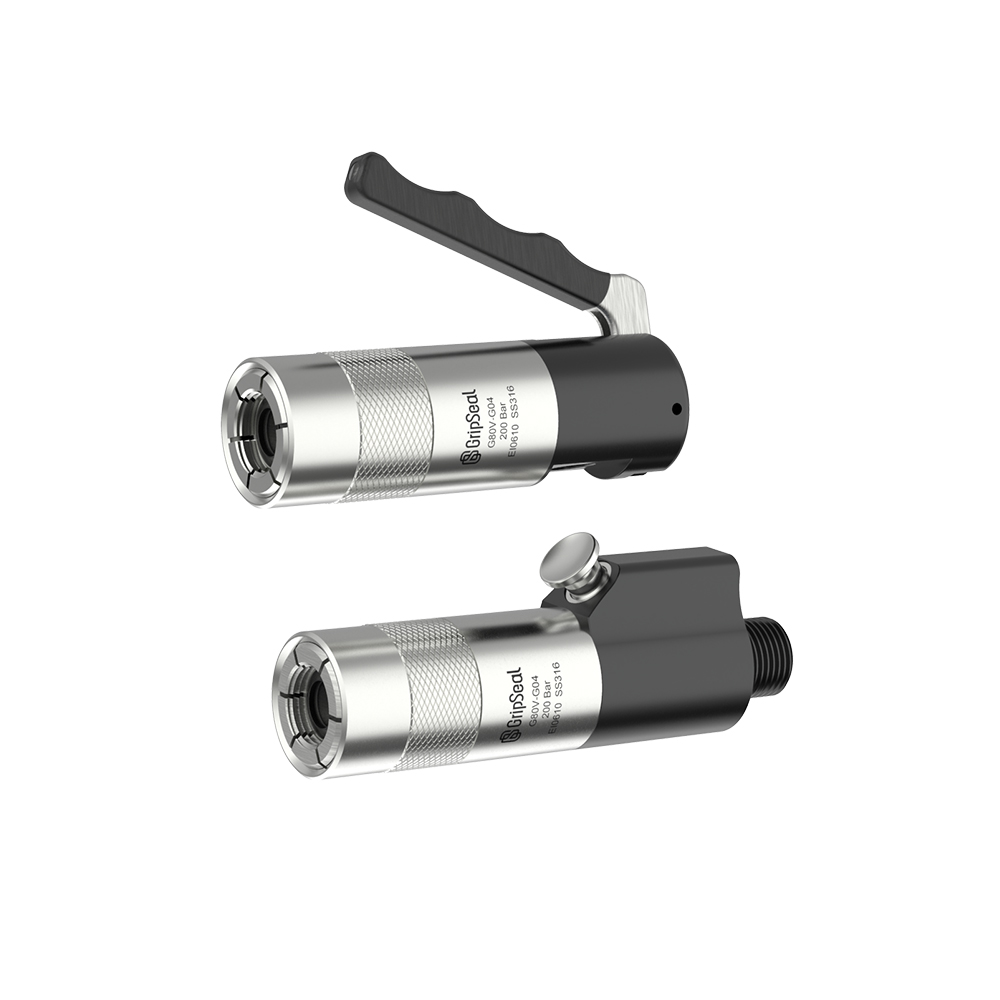

Partial of models display

Features and advantages of G85 Series Quick Connectors

Threaded collet locking,no damage to the thread, high connection efficiency

316 stainless steel body, excellent mechanical properties,high pressure limit

Multiple actuating module to accommodate diverse operational requirements

Large flow diameter,minimize impact on running testing

Main seal, simple to be replaced and easily maintenanced

The Specifications and parameters of G85 connectors

Max operation pressure	From Vacuum to 350 Bar
Sealing range	Refer to specification sheet
External threaded depth	Refer to specification sheet
Termination port	G1/8, G1/4, G3/8
Body material	316 stainless steel
Main seal	Buna-N
Internal seal	Buna-N
Operation temperature	-20°C-120°C

Make connections easier

Application case

Gas stove

Wall-mounted water heater

Toilet

Specification (water heater dedicated)

External thread port (with inner cone of 60°C)

G85 Metric external thread connector

*G85 male threaded connectors, confirmation of thread information is required to optimize connector design.

G85 BSPP external thread connector

G85 BSPT external thread connector

G85 NPT external thread connector specification sheet

G85 SAE-45°C external thread connector specification sheet
