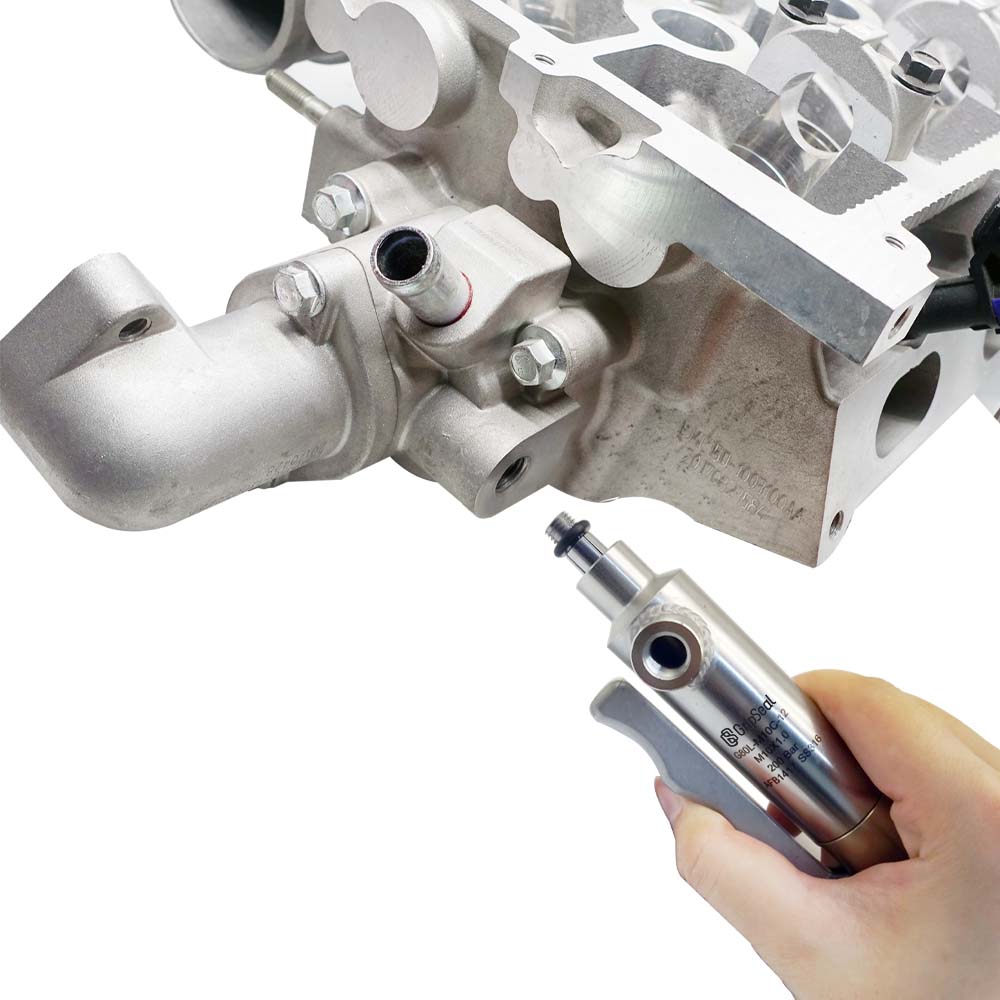

G80 series connectors are designed for female threads and are widely applied to seal and connect various threaded holes, such as high pressure testing of automotive parts, air leak testing, aging test new energy motor controller shells, etc. Various driving methods are available, suitable for a variety of manual and pneumatic applications.
Offering three types of actuation method: pneumatic, button valve and lever, to meet the requirements of various applications
Simple and reliable, easy to be replaced, low maintenance cost, O-ring materials are optional, adapt to different applications
Excellent mechanical properties, strong, wear-resistant, greatly extending the service life of connector
Three different lengths are available for common model necks to meet the demand for position avoidance and prevent volume interference
Modularity of internal structure, integrated replacement, simple maintenance.
Dispaly

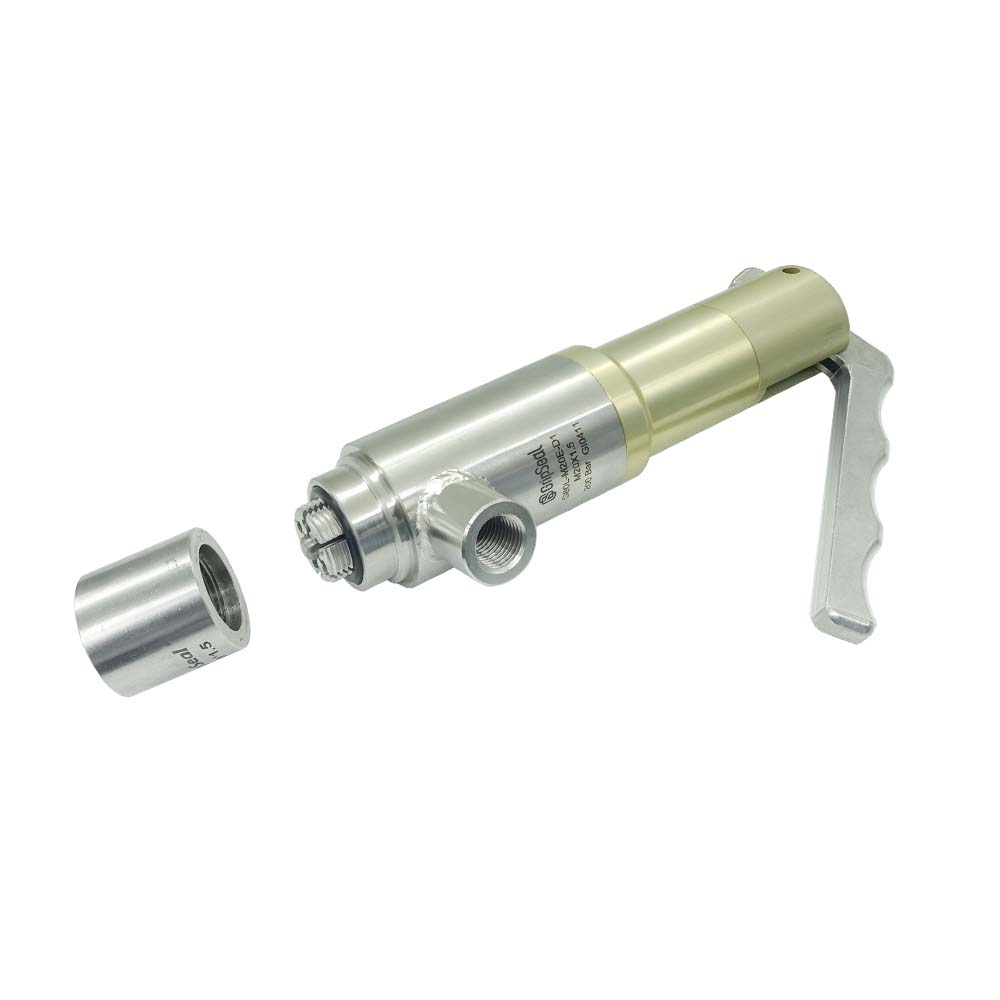

Connect to female threaded bore, expandable locking thread collet, no damage to screw threads
Actuation modularity to meet customer requirements for manual and pneumatic operation
Customized neck length to avoid volume interference
Flow hole attached to the screw thread collet to enhance the flow rate and shorten
O-ring seal, simple to be replaced and easily maintenanced
| Max operation pressure | From Vacuum to 350 Bar |
| Sealing range | Refer to specification sheet |
| Minimizeinsert depth | Refer to specification sheet |
| Termination port | G1/8, G1/4, G3/8, G1/2 |
| Body material | 316 stainless steel |
| Main seal | Buna-N |
| Internal seal | Buna-N / Fluororubber |
| Operation temperature | -20°C-120°C |
Brake caliper
Electric motor shell
Air conditioning industry
| Part Number | Internal threaded size A | Body No. | Minimize insert depth | Fluid threaded | Maximum pressure | Body material | Seals Material | Main Seals Package |
| G80L-G01 | G1/8″ | 1 | 7 | G 1/8 | 200 Bar | 316 stainless steel | Buna-N | SG8001 |
| G80L-G02 | G1/4″ | 2 | 7.5 | SG8002 | ||||
| G80L-G03 | G3/8″ | 3 | 10 | G 1/4 | SG8003 | |||
| G80L-G04 | G1/2″ | 4 | 11.5 | SG8004 | ||||
| G80L-G06 | G3/4″ | 5 | 12 | G 3/8 | SG8006 | |||
| G80L-G08 | G1″ | 6 | 12 | SG8008 |
| Part Number | Internal threaded size A | Body No. | Minimize insert depth | Fluid threaded | Maximum pressure | Body material | Seals Material | Main Seals Package |
| G80L-R01 | R1/8″(BSPT) | 1 | 7 | G 1/8 | 200 Bar | 316 stainless steel | Buna-N | SG8001 |
| G80L-R02 | R1/4″(BSPT) | 2 | 7.5 | SG8002 | ||||
| G80L-R03 | R3/8″(BSPT) | 3 | 10 | G 1/4 | SG8003 | |||
| G80L-R04 | R1/2″(BSPT) | 4 | 11.5 | SG8004 | ||||
| G80L-R06 | R3/4″(BSPT) | 5 | 12 | G 3/8 | SG8006 | |||
| G80L-R08 | R1″(BSPT) | 6 | 12 | SG8008 |
| Part Number | Internal threaded size A | Body No. | Minimize insert depth | Fluid threaded | Maximum pressure | Body material | Seals Material | Main Seals Package |
| G80L-N01 | NPT1/8″ | 1 | 7 | G 1/8 | 200 Bar | 316 Stainless Steel | Buna-N | SG8001 |
| G80L-N02 | NPT1/4″ | 2 | 7.5 | SG8002 | ||||
| G80L-N03 | NPT3/8″ | 3 | 10 | G 1/4 | SG8003 | |||
| G80L-N04 | NPT1/2″ | 4 | 11.5 | SG8004 | ||||
| G80L-N06 | NPT3/4″ | 5 | 12 | G 3/8 | SG8006 | |||
| G80L-N08 | NPT1″ | 6 | 12 | SG8008 |
| Part Number | Internal threaded size A | Body No. | Minimize insert depth | Fluid threaded | Maximum pressure | Body material | Seals Material | Main Seals Package |
| G80L-U02 | UNF5/16-24 | 1 | 7 | G 1/8 | 200 Bar | 316 Stainless Steel | Buna-N | SG80UN02 |
| G80L-U03 | UNF3/8-24 | 1 | 7 | SG80UN03 | ||||
| G80L-U04 | UNF7/16-20 | 1 | 7.5 | SG80UN04 | ||||
| G80L-U05 | UNF1/2-20 | 2 | 7.5 | SG80UN05 | ||||
| G80L-U06 | UNF9/16-18 | 3 | 7.5 | SG80UN06 | ||||
| G80L-U08 | UNF3/4-16 | 4 | 11.5 | G 1/4 | SG80UN08 | |||
| G80L-U10 | UNF 7/8-14 | 4 | 11.5 | SG80UN10 | ||||
| G80L-U12 | UNF 1-1/16-12 | 5 | 12 | G 3/8 | SG80UN12 | |||
| G80L-U14 | UNF1-3/16-12 | 6 | 12 | SG80UN14 | ||||
| G80L-U16 | UNF 1-5/16-12 | 6 | 12 | SG80UN16 |
Note:

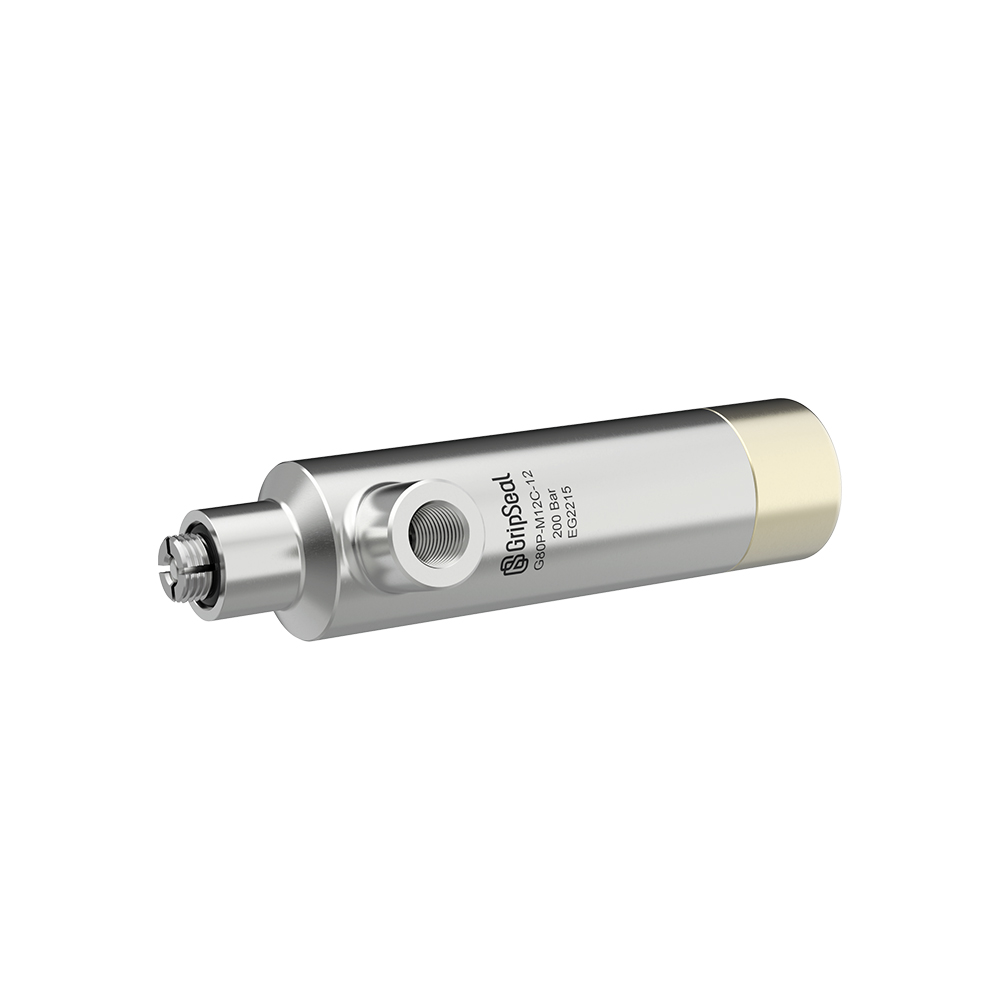

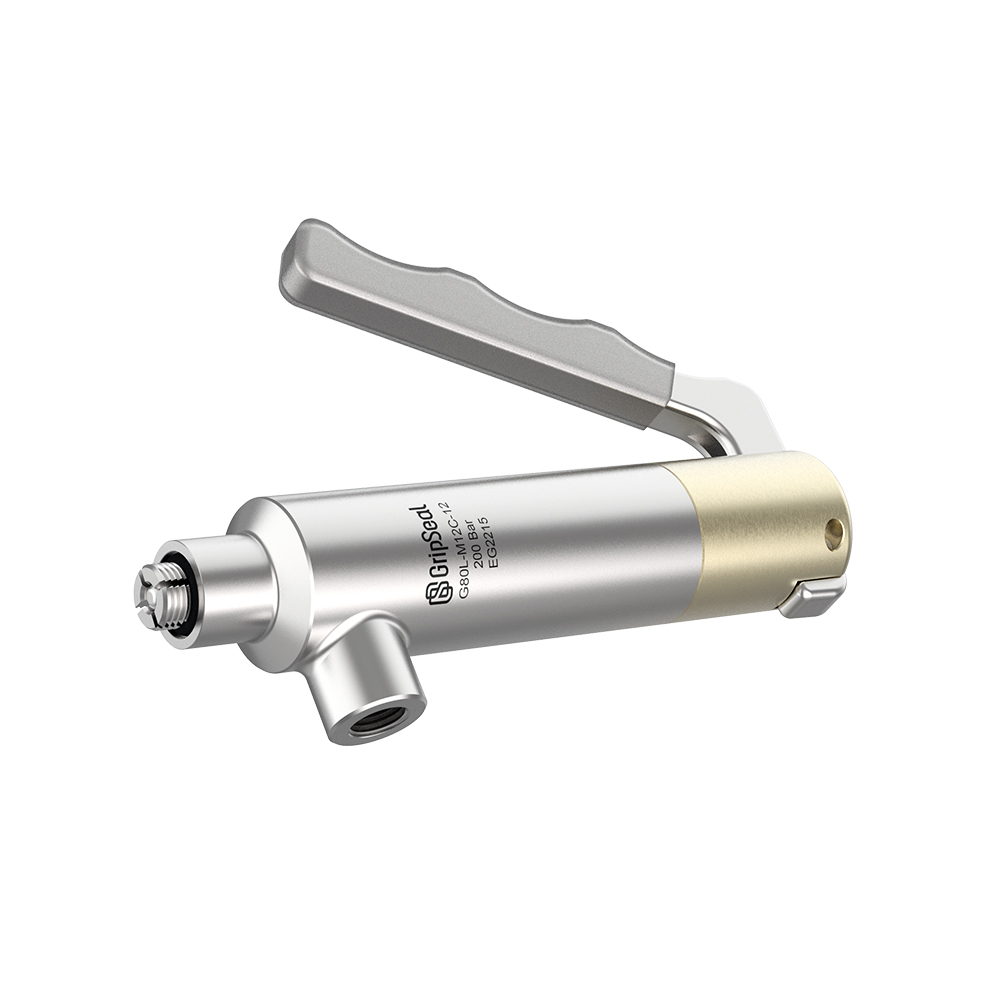

The letter after G80 represents the connector actuation form. G80L stands for level actuated operation, G80V represents button-type operation, G80P represents pneumatic pilot-type operation. Both G80V and G80P need to be connected to the pilot air pipe, with pilot air pressure of 4-6Bar.
Modularity of actuation, level-actuated G80L, pneumatic-actuated G80P, push-button-driven G80V. Interchangeable to reduce retrofit cost and provide customization service.
| Body No. | B1(media port) | D1 | D2 | D3 | LO | L1 | 2 | L3 | 4 | L5 | L6 |
| 1 | G1/8″ | 16 | 27 | 27 | 5.5 | 6.5 | 85 | 24.5 | 38 | 38 | 32 |
| 1A | G1/8″ | 16 | 27 | 27 | 5.5 | 12.5 | 90 | 24.5 | 38 | 38 | 32 |
| 1B | G1/8″ | 16 | 27 | 27 | 5.5 | 25.5 | 105 | 24.5 | 38 | 38 | 32 |
| 2 | G1/8″ | 20 | 27 | 27 | 6.5 | 6.5 | 85 | 24.5 | 38 | 38 | 32 |
| 2A | G1/8″ | 20 | 27 | 27 | 6.5 | 12.5 | 90 | 24.5 | 38 | 38 | 32 |
| 2B | G1/8″ | 20 | 27 | 27 | 6.5 | 25.5 | 110 | 24.5 | 38 | 38 | 32 |
| 3 | G1/4″ | 24 | 32 | 32 | 8 | 9.5 | 100 | 30 | 46 | 41 | 35 |
| 4 | G1/4″ | 30 | 38 | 32 | 8 | 8.5 | 123 | 35 | 54 | 41 | 35 |
| 5 | G3/8″ | 35 | 45 | 32 | 12 | 7.5 | 153 | 37 | 59.5 | 41 | 35 |
| 6 | G3/8″ | 40 | 50 | 32 | 12 | 7.5 | 153 | 42 | 67 | 41 | 35 |
| Part Number | Internal threaded size A | Body No. | Minimize insert depth | Fluid threaded | Maximum pressure | Body material | Seals Material | Main Seals Package |
| G80L-M10C | M10 x 1.0 | 1 | 7 | G 1/8 | 200 Bar | 316 Stainless Steel | Buna-N | SG80M10 |
| G80L-M10D | M10 x 1.25 | 1 | ||||||
| G80L-M10E | M10 x 1.5 | 1 | ||||||
| G80L-M10C-12 | M10 x 1.0 | 1A* | ||||||
| G80L-M10D-12 | M10 x 1.25 | 1A | ||||||
| G80L-M10E-12 | M10 x 1.5 | 1A | ||||||
| G80L-M10C-25 | M10 x 1.0 | 1B* | ||||||
| G80L-M10D-25 | M10 x 1.25 | 1B | ||||||
| G80L-M10E-25 | M10 x 1.5 | 1B | ||||||
| G80L-M12C | M12 x 1.0 | 2 | 7.5 | SG80M12 | ||||
| G80L-M12D | M12 x 1.25 | 2 | ||||||
| G80L-M12E | M12 x 1.5 | 2 | ||||||
| G80L-M12C-12 | M12 x 1.0 | 2A* | ||||||
| G80L-M12D-12 | M12 x 1.25 | 2A | ||||||
| G80L-M12E-12 | M12 x 1.5 | 2A | ||||||
| G80L-M12C-25 | M12 x 1.0 | 2B* | ||||||
| G80L-M12D-25 | M12 x 1.25 | 2B | ||||||
| G80L-M12E-25 | M12 x 1.5 | 2B | ||||||
| G80L-M14E | M14x1.5 | 2 | SG80M14 | |||||
| G80L-M16E | M16x1.5 | 3 | 10 | SG80M16 | ||||
| G80L-M18E | M18x1.5 | 3 | SG80M18 | |||||
| G80L-M20E | M20x1.5 | 4 | 11.5 | G 1/4 | SG80M20 | |||
| G80L-M22E | M22x1.5 | 4 | SG80M22 | |||||
| G80L-M24E | M24x1.5 | 5 | 12 | SG80M24 | ||||
| G80L-M26E | M26x1.5 | 5 | SG80M26 | |||||
| G80L-M27F | M27x2.0 | 5 | G 3/8 | SG80M27 | ||||
| G80L-M28E | M28x1.5 | 6 | 12 | SG80M28 | ||||
| G80L-M30E | M30x1.5 | 6 | SG80M30 | |||||
| G80L-M33F | M33x2.0 | 6 | SG80M33 |
1. Other thread specifications can be customized on request, up to 2 inches.
2. 1A2A front body neck length is 12.5mm.
3. 1B2B front body neck length is 25.5mm, which is applicable to some applications with location restrictions.
| Part Number | Dim A | Body No. | Minimize insert depth | Fluid threaded | Maximum pressure | Body material | Seals Material | Main Seals Package |
| G80HL-G02 | G1/4″ | 2 | 7.5 | G1/8″ | 350 Bar | 316 Stainless Steel | Buna-N | SG80G02 |
| G80HL-G03 | G3/8″ | 3 | 8 | G 1/4″ | SG80G03 | |||
| G80HL-M14E | M14*1.5 | 2 | 7.5 | G1/8″ | SG80M14 | |||
| G80HL-M16E | M16*1.5 | 3 | 10 | G 1/4″ | SG80M16 | |||
| G80HL-M18E | M18*1.5 | 3 | 10 | G 1/4″ | SG80M18 | |||
| G80HL-M20E | M20*1.5 | 4 | 11.5 | G3/8″ | SG80M20 | |||
| G80HL-M22E | M22.1.5 | 4 | 11.5 | G3/8″ | SG80M22 | |||
| G80HL-M27F | M27*2.0 | 5 | 12 | G3/8″ | SG80M27 |
| Part Number | Dim A | Body No. | Minimize insert depth | Fluid threaded | Maximum pressure | Body material | Seals Material | Main Seals Package |
| G80L-M16ES | M16*1.5 | 3S | 10 | G 3/8 | 50 Bar | 316 Stainless Steel | Buna-N | SG80M16 |
| G80L-M18ES | M18*1.6 | SG80M18 | ||||||
| G80L-G03S | G3/8″ | SG80G03 | ||||||
| G80L-R03S | R3/8″ | SG80R03 |
