GripSeal G70 Non-straight Tube Connector

Contact

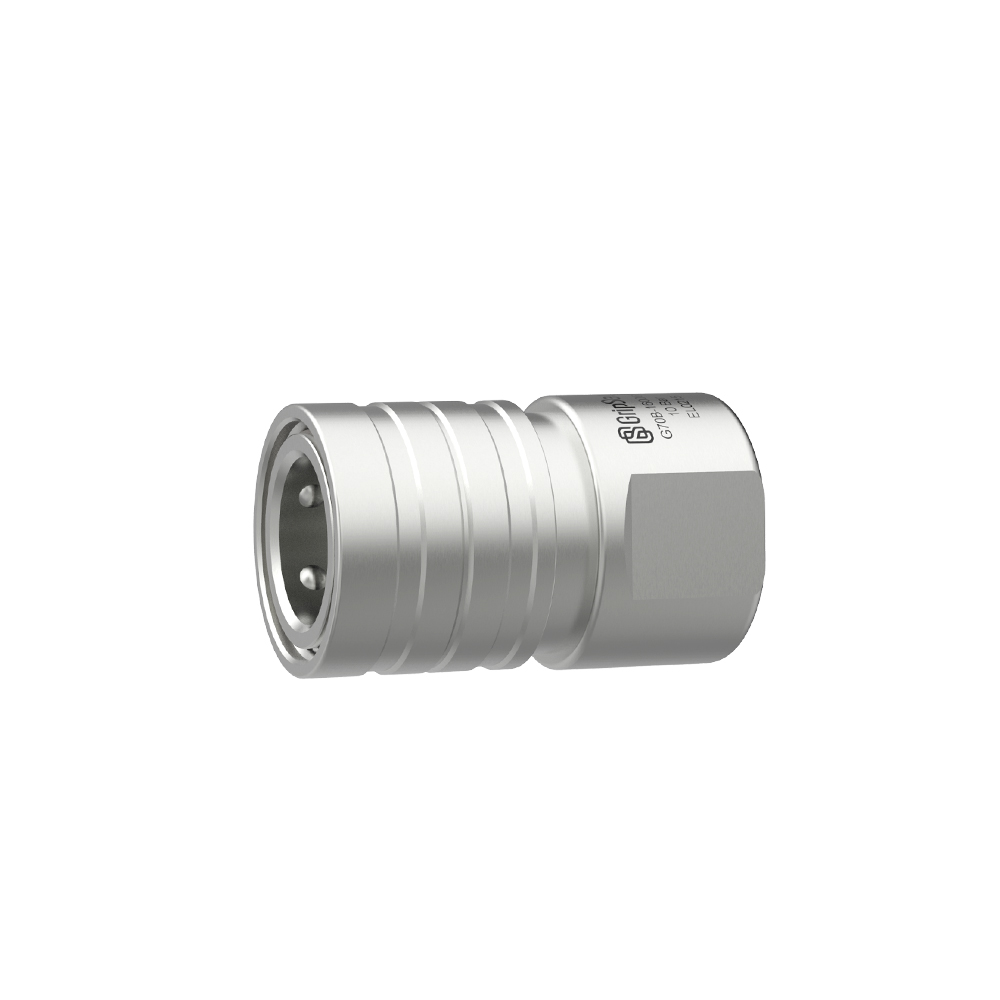

Description

G70 series are external connectors, which are widely applicable to various cooling-water tube, fuel pipes and other beaded pipes for leak testing, operation testing, aging testing, etc. Compact structure allows one-handed holding and easy to use, handheld and lightly pushed to accomplish the connection.

Beaded tube connection solution

Main seals, easy to be replaced
Push-pull operation, simple and reliable
High flow design to provide an efficient test
Safety blue ring to ensure the connection

Features of G70 Series Quick Connectors

1. Sleeve actuated operation
Easy to operate, a gentle push to accomplish the threaded connection; the outer shell contains a mesh knurling, increasing handheld friction for easy operation
2. Main seals
Reliable sealing, high-pressure rated limit, with easily replaceable seal for convenient maintenance
3. 316 Stainless Steel
Excellent mechanical properties, strong, wear-resistant, which can significantly extend the service life
4. Straight-through Design
Maximizing flow and reducing the impact on running testing

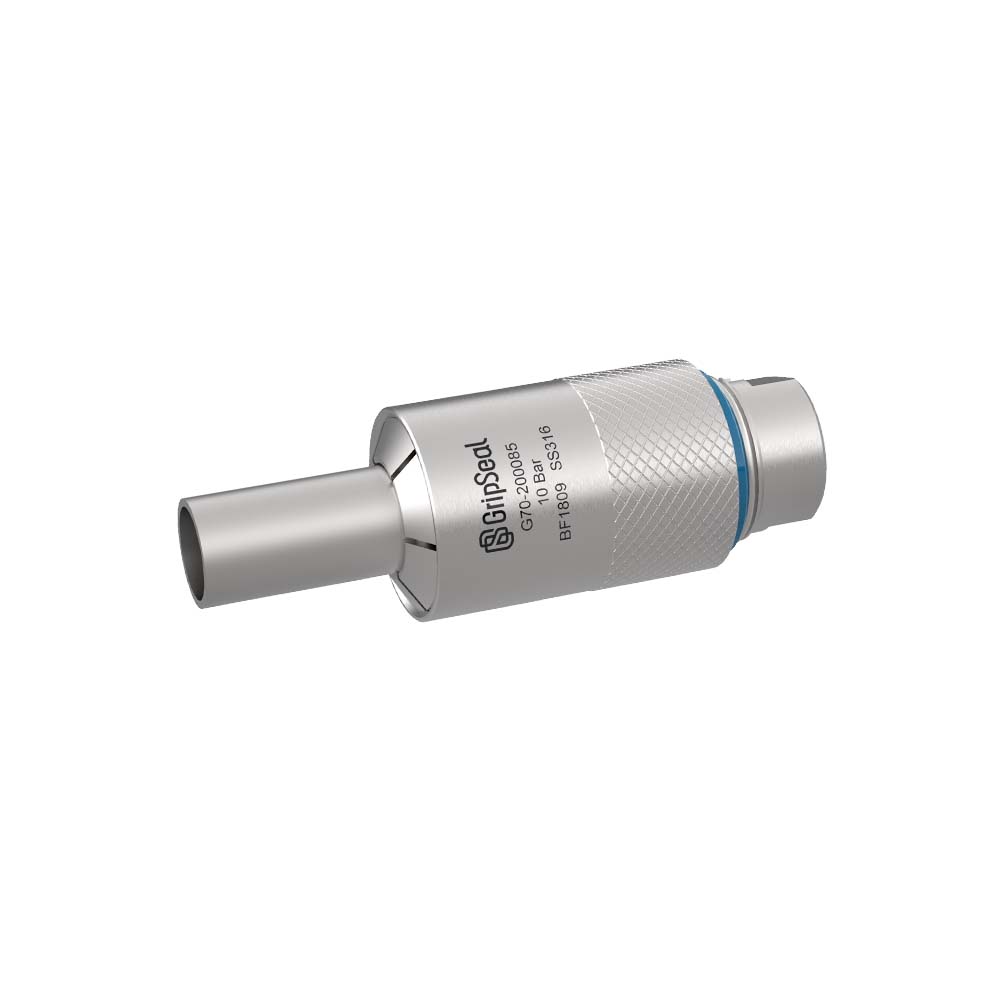

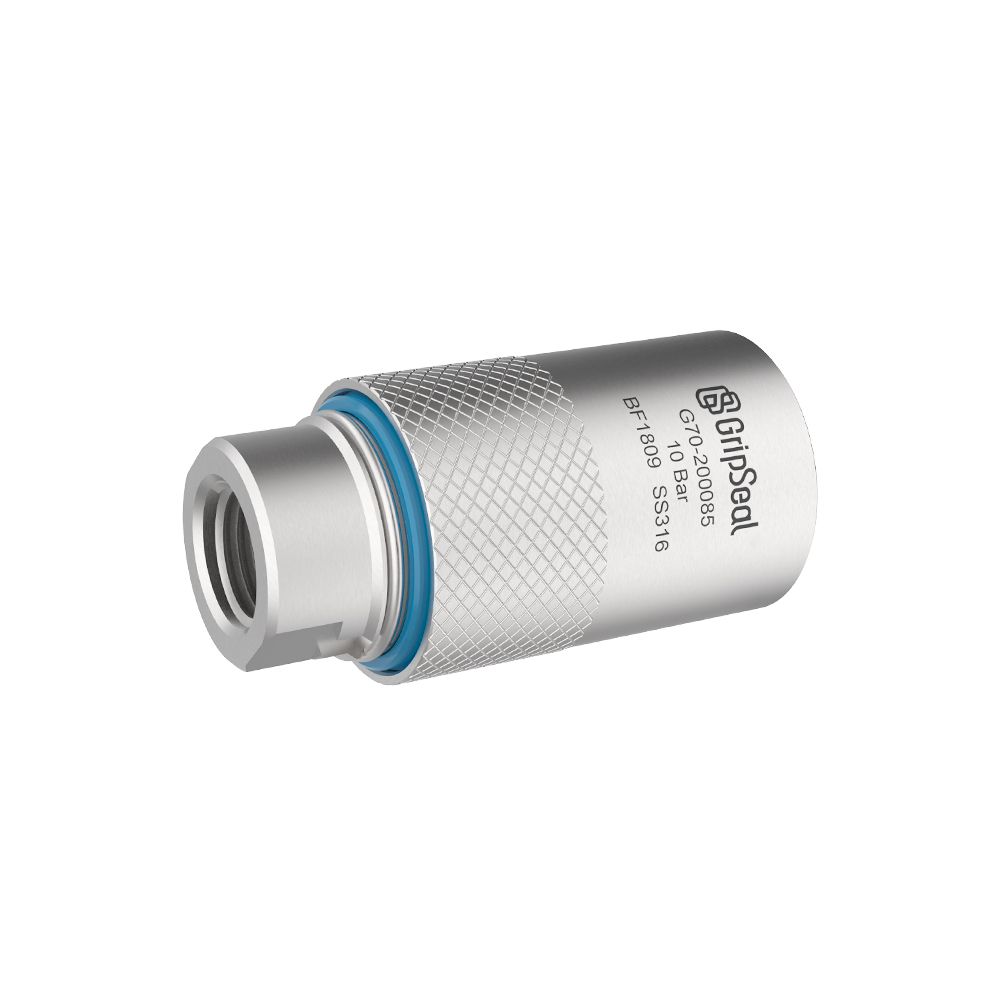

5. Safety blue Ring
In-place confirmation blue ring to ensure the normal operation of connectors

Dispaly

Features and advantages of G70 Series Quick Connectors

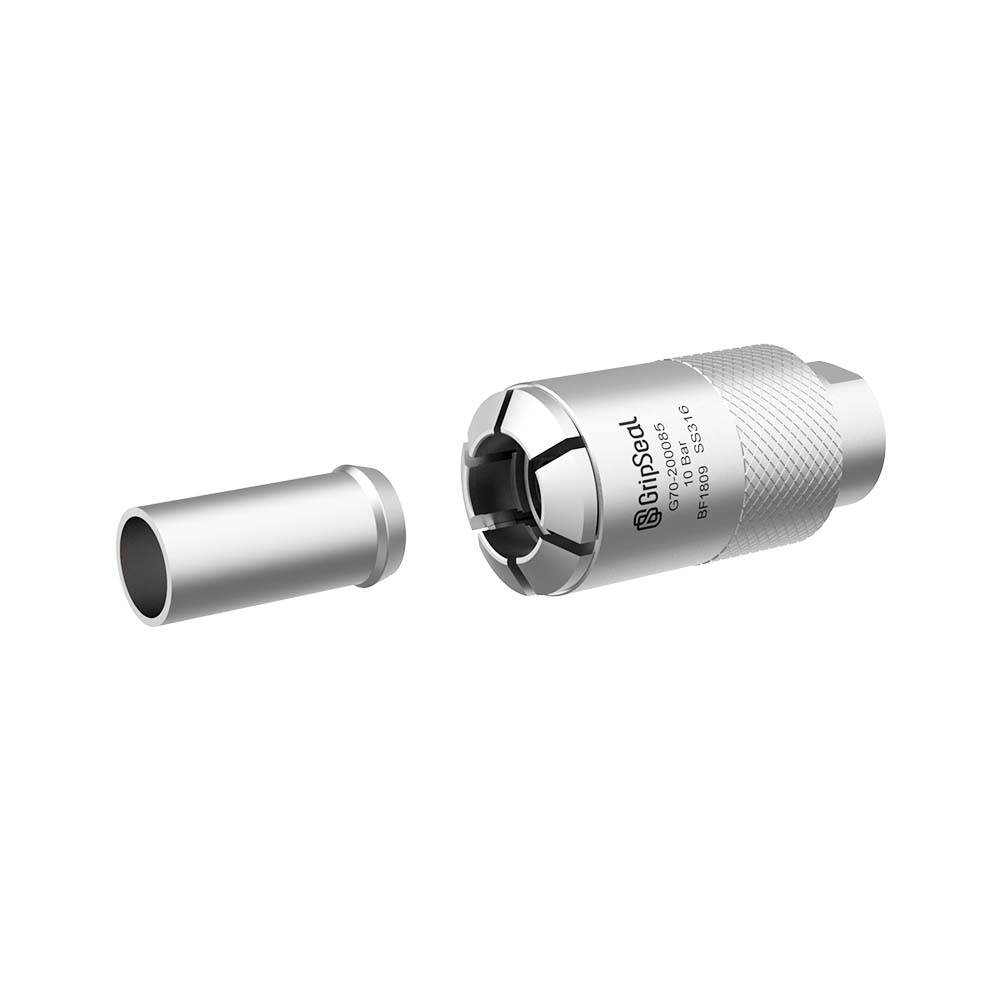

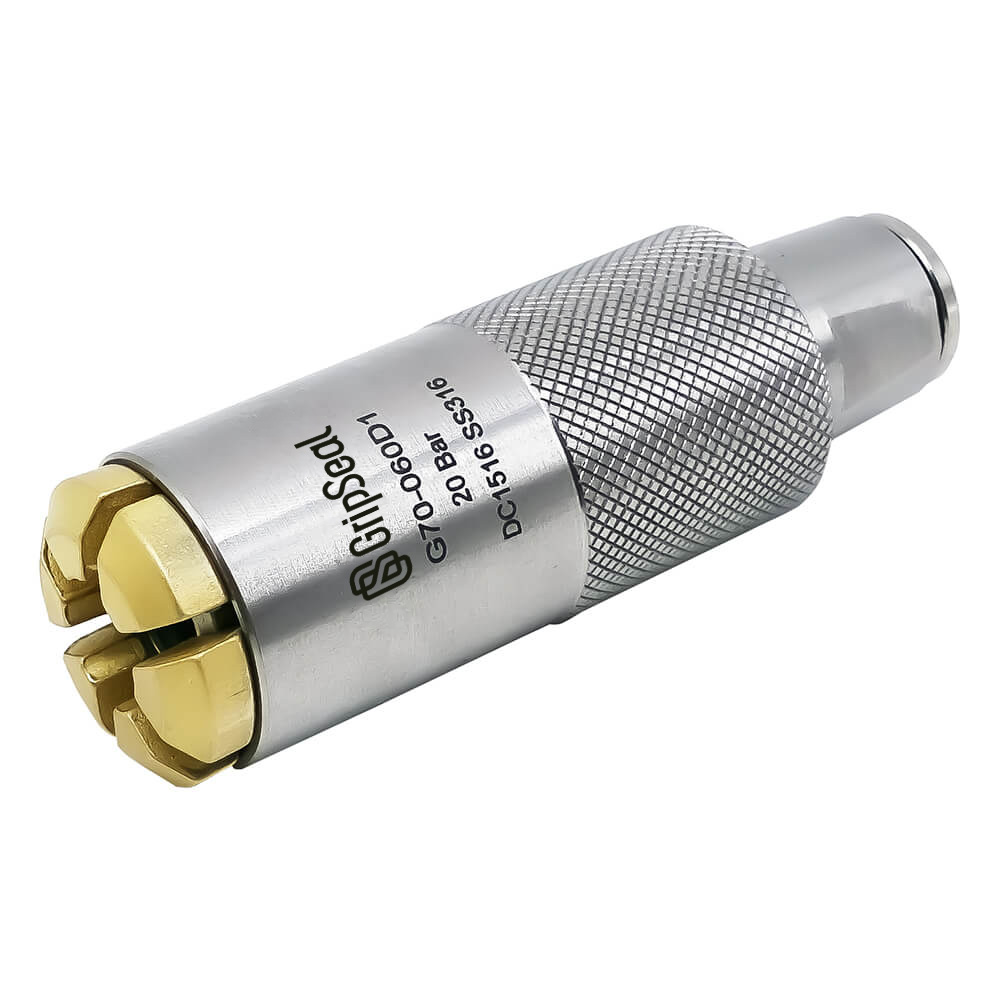

External clamped collets for gripping of beaded tube end features

Mesh knurling to increase friction and facilitate operation

Sleeve actuated, easily pushed to achieve locking and disconnecting

Straight-through Design Maximizing flow and reducing the impact on running testing

Reliable sealing, with easily replaceable seal for convenient maintenance

The specification and parameters of G70 connectors

Max operation pressure	From Vacuum to 70 Bar
Sealing range	Refer to specification sheet
Minimizeinsert depth	4-8mm
Termination port	Refer to specification sheet
Body material	316 stainless steel
Main seal	Neoprene, Buna-N
Internal seal	Buna-N
Operation temperature	-20°C-120°C

Make connections easier

Application case

New energy battery water-cooling plate test

Leak test during engine assembly

Engine Cooling Waterway Test

Non-straight tube specification sheet BG2-BG8 body

Model NO.	Dim A	Body No.	Dim B	Dim C	Fluid threaded D	Maximum pressure	Body material	Seals Material	Main Seals Package
G70-050025	5	2	25	75	G1/4	10Bar	316 SS	Neoprene	SG70050025
G70-060025	6								SG70060025
G70-070025	7								SG70070025
G70-080025	8								SG70080025
G70-090025	9								SG70090025
G70-100045	10	3	30	75	G 1/4	10 bar	316 SS	Neoprene	SG70100045
G70-110045	11								SG70110045
G70-120045	12								SG70120045
G70-130045	13								SG70130045
G70-140065	14	4	35	80	G3/8	10 bar	316 SS	Neoprene	SG70140065
G70-150065	15								SG70150065
G70-160065	16								SG70160065
G70-170065	17								SG70170065
G70-180085	18	5	40	80	G1/2	10 bar	316 SS	Neoprene	SG70180085
G70-190085	19								SG70190085
G70-200085	20								SG70200085
G70-210085	21								SG70210085
G70-220085	22								SG70220085
G70-230125	23	6	45	90	G3/4	10 bar	316 SS	Neoprene	SG70230125
G70-240125	24								SG70240125
G70-250125	25								SG70250125
G70-260125	26								SG70260125
G70-270125	27								SG70270125
G70-280125	28	7	50	90	G3/4	10 bar	316 SS	Neoprene	SG70280125
G70-290125	29								SG70290125
G70-300125	30								SG70300125
G70-310125	31								SG70310125
G70-320125	32								SG70320125
G70-330125	33								SG70330125
G70-340125	34	8	50	90	G3/4	10 bar	316 SS	Neoprene	SG70340125
G70-350125	35								SG70350125
G70-360125	36								SG70360125
G70-370125	37								SG70370125
G70-380125	38								SG70380125
G70-390125	39								SG70390125
G70-400125	40								SG70400125

Note: For G70 connectors with 4-8 bodies, the beaded diameter of the sealed tubing is 2mm larger than the outer diameter of the straight tubing. For example, if the diameter of the sealed tubing of G70-200085 is 20mm, the beaded diameter is 22mm. The maximum pressure rated of standard products is 10Bar by default, please contact us for high pressure rated from 10 to 50Bar

Model NO.	Dim A	Body No.	Dim B	Dim C	Fluid threaded D	Maximum pressure	Body material	Seals Material	Main Seals Package
G70-160065A	16	4	35	75	G3/8	10Bar	316 SS	Neoprene	SG70160065
G70-180085A	18	5	40	80	G1/2				SG70180085
G70-190085A	19	5	40	80	G1/2				SG70190085
G70-200085A	20	5	40	80	G1/2				SG70200085
G70-210085A	21	5	40	80	G1/2				SG70210085
G70-220085A	22	5	40	80	G1/2				SG70220085

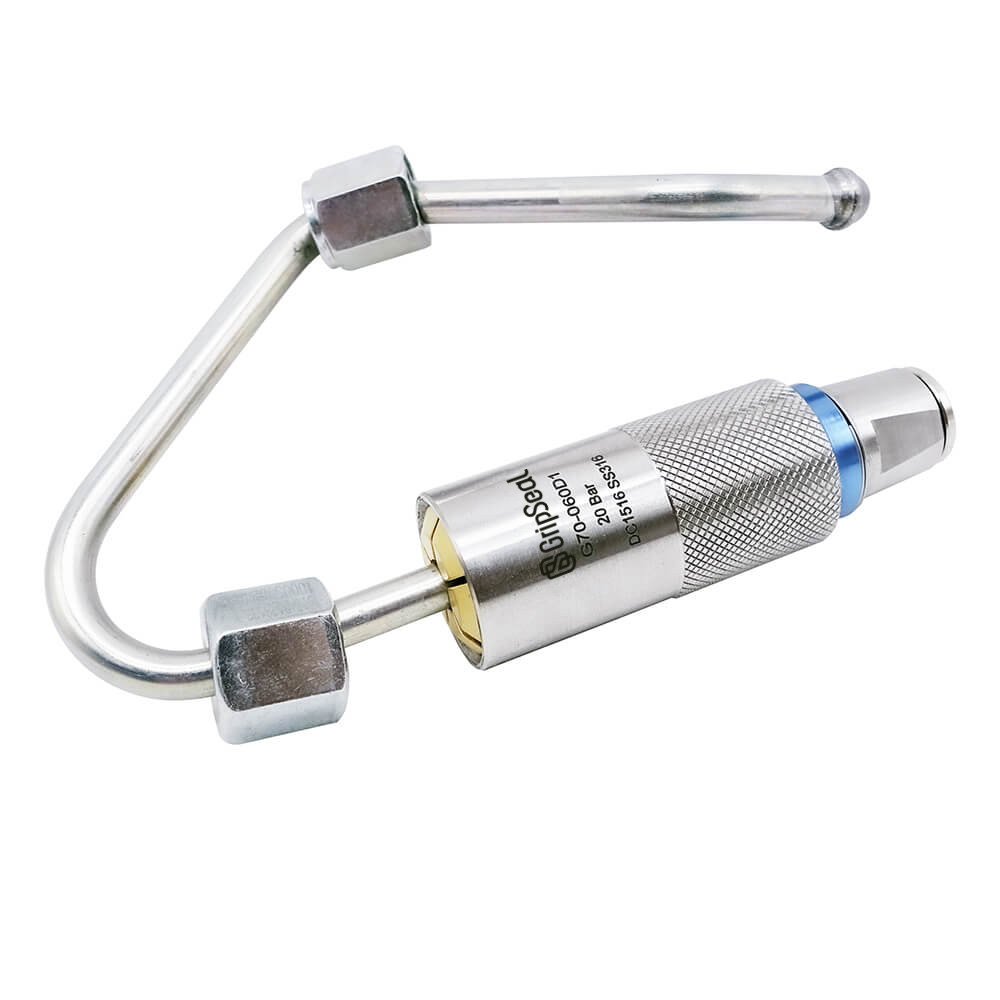

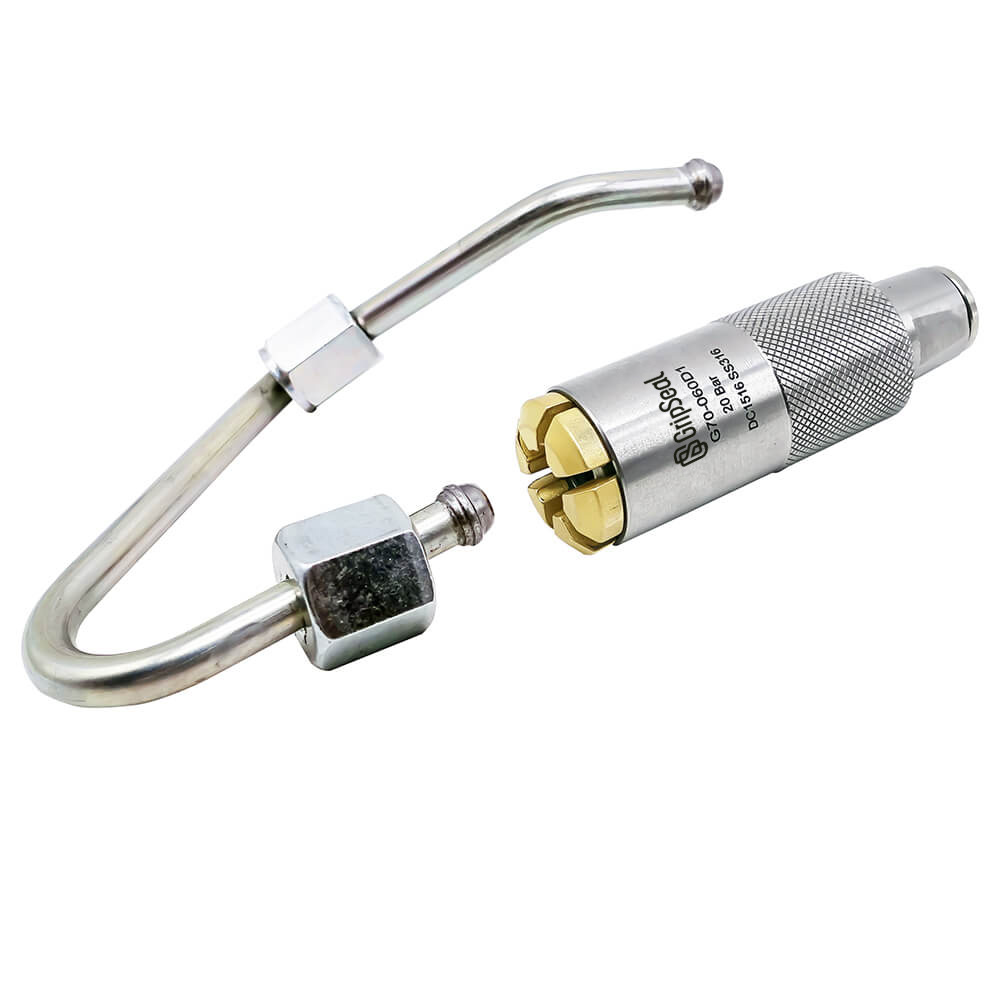

Fuel rail connector – J2044 standard

Model NO.	Dim A	Body No.	Dim B	Dim C	Fluid threaded D	Maximum pressure	Body material	Seals Material	Main Seals Package
G70-J063	6.30±0.06	2	25	75	G1/4	50 Bar	316 SS	Buna-N	SG70J063
G70-J079	7.89±0.06	2	25	75					SG70J079
G70-J095	9.49±0.06	3	30	80					SG70J095
G70-J099	9.89±0.06								SG70J099
G70-J110	11.05±0.10								SG70J110
G70-J118	11.80±0.10								SG70J118
G70-J126	12.61±0.10	4	35	80	G3/8				SG70J126
G70-J158	15.82±0.10	4	35	80	SG70J158
G70-J189	18.90±0.10	5	40	80	G1/2				SG70J189
G70-J227	22.70±0.15	6	45	90	G3/4				SG70J227
G70-J255	25.50±0.15	6	45	90	SG70J255
G70-J284	28.42±0.15	7	50	90	G3/4				SG70J284

Fuel rail connector with valve inside – J2044 standard

Model NO.	Dim A	Body No.	Dim B	Dim C	Fluid threaded D	Maximum pressure	Body material	Seals Material	Main Seals Package
G70-J063V	6.30±0.06	2	25	75	G1/4	50 Bar	316 SS	Neoprene	SG70J063
G70-J079V	7.89±0.06	2	25	75					SG70J079
G70-J095V	9.49±0.06	3	30	80					SG70J095
G70-J118V	11.80±0.10	4	35	80	G3/8				SG70J118
G70-J158V	15.82±0.10	4	35	80	G3/8				SG70J158

Built-in shut-off valve for G70V connectors:

There is no difference in appearance between the G70V series connectors and the G70 series connectors. The V series is equipped with an internal shut-off valve that can withstand a maximum pressure of 50 bar. In case the connector is disconnected from the test piece, the built-in valve is closed, which prevents the leakage of substances inside the connector, such as helium or fluids. The internal structure and valve body are straight-through design, minimizing pressure and flow loss during testing. The internal structural parts are made of 316 stainless steel, and the seal is made of excellent corrosion-resistant Buna-N, which largely ensures the service life and versatility of the connector.

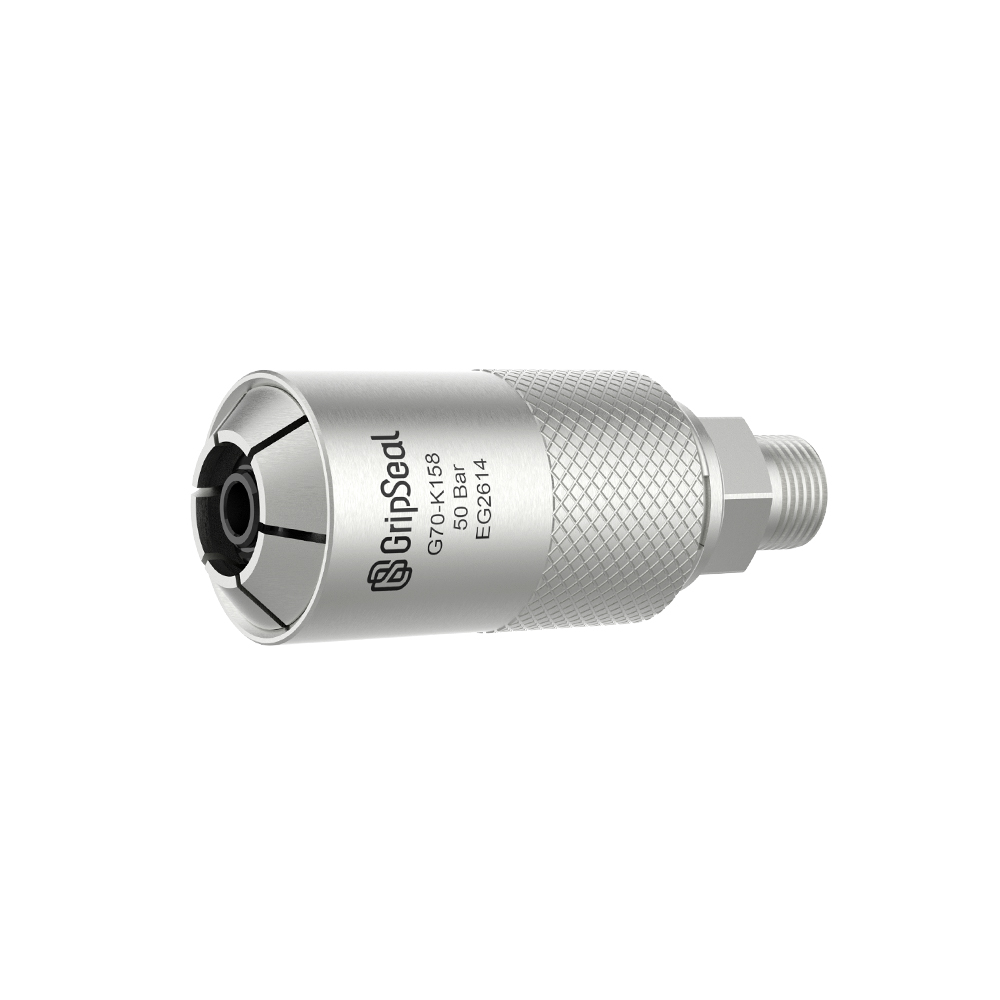

Leak test on Expanded copper tube

Model NO.	Dim A	Body No.	Dim B	Dim C	Fluid threaded D	Maximum pressure	Body material	Seals Material	Main Seals Package
G70-K095	9.52	2	25	90	R3/8“	70 Bar	316 SS	Buna-N	SG70K095
G70-K127	12.7	3	30	90					SG70K127
G70-K158	15.8	4	35	95					SG70K158
G70-K190	19	5	40	110					SG70K190
G70-K222	22.2	5	40	110					SG70K222
G70-K254	25.4	6	45	110					SG70K254
G70-K285	28.5	7	50	120					SG70K285

Running test on process tube

Model NO.	Dim A	Body No.	Dim B	Dim C	Fluid threaded D	Maximum pressure	Body material	Seals Material	Main Seals Package
G70KHF-095	9.52	3	20	75	R1/4	70 Bar	316 SS	Buna-N	SG70KHF095
G70KHF-127	12.7	4	35	80	R3/8				SG70KHF127
G70KHF-158	15.8	5	40	85	R1/2				SG70KHF158
G70KHF-190	19	6	45	110	R3/4				SG70KHF190
G70KHF-222	22.2	6	45	110	R3/4				SG70KHF222

G70R connector (Reduced version)

Model NO.	Dim A	Body No.	Dim B	Dim C	Fluid threaded D	Maximum pressure	Body material	Seals Material	Main Seals Package
G70R-190	19	5	40	70	G3/8	10 Bar	316 SS	Buna-N	SG70R190
G70R-200	20	5	40	70	G3/8	10 Bar	316 SS	Buna-N	SG70R200
