G60 series are a special connector for male threads, which are widely used in various instruments/meters, home appliances and air conditioning industries for running testing, such as ignition testing of water heaters, pressure testing of instruments, refrigerant charging during the assembly of external air conditioning devices, etc. Simple operation method,handheld and lightly pushed to complete the connection, make this series the perfect choice for male thread connection/testing solutions.

Male Threaded Connection Solution

---

• Easily replaceable seals
• Push-pull operation, convenient and reliable
• Leak tight connection to provide an efficient testing
• Safety blue ring to ensure the connection

Features of G60 Series Connectors

• 1. Sleeve actuated operation

  Easy to operate, a gentle push to accomplish the threaded connection; the outer shell contains a mesh knurling, increasing handheld friction for easy operation.

• 2. End Sealing

  Reliable sealing, high-pressure rated limit, with easily replaceable seal for convenient maintenance.

• 3. 316 Stainless Steel

  Excellent mechanical properties, strong, wear-resistant, which can significantly extend the service life

• 4. Straight-through Design

  Maximizing flow and reducing the impact on running testing

• 5. Safety blue Ring

  In-place confirmation blue ring to ensure the normal operation of connectors

G60 external thread quick connectors are available for all sizes of British threads, metric threads, SAE threads, etc., and for pressures from 20 bar, 50 bar, 100 bar to 2500 bar (UHP version).

Main Body Display

Features and advantages of G60 Series Quick Connectors

External thread locking, no rotation required, No-harm to product threads

Mesh knurlings, increased friction, easy to operate

Sleeve structure, easily push to achieve locking and disconnecting

Straight-through design, reducing loss to flow and ensuring accurate test results

Easy replaceable seals, simple to be replaced and convenient maintenance

The Specifications and parameters of G60 connectors

Max operation pressure	From Vacuum to 50Bar (UHP version 2500Bar)
Sealing range	1/8″-2″
Minimizeinsert depth	25mm
Termination port	Refer to specification sheet
Material of main body	Aluminum alloy, stainless steel, nylon
Main seal	Neoprene/silicone
Internal seal	Buna-N
Operation temperature	-20°C-120°C

Make connections easier

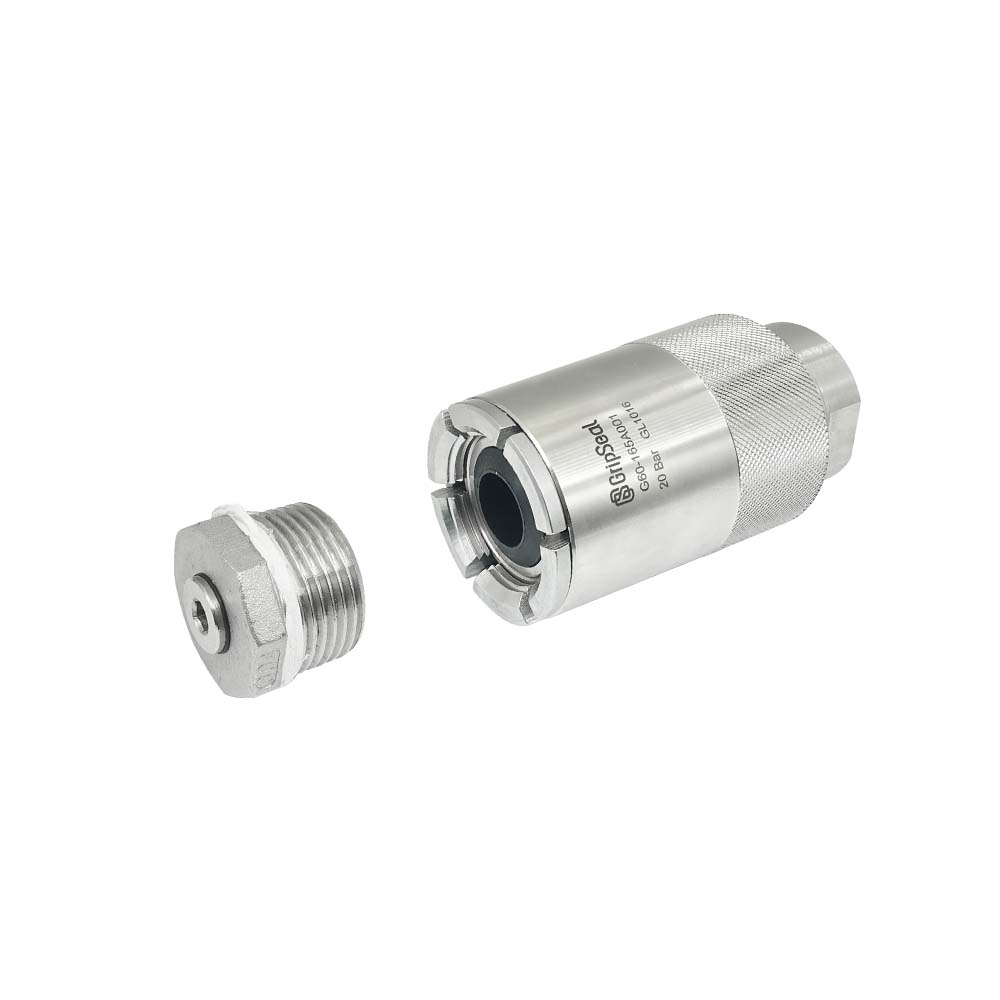

Application case

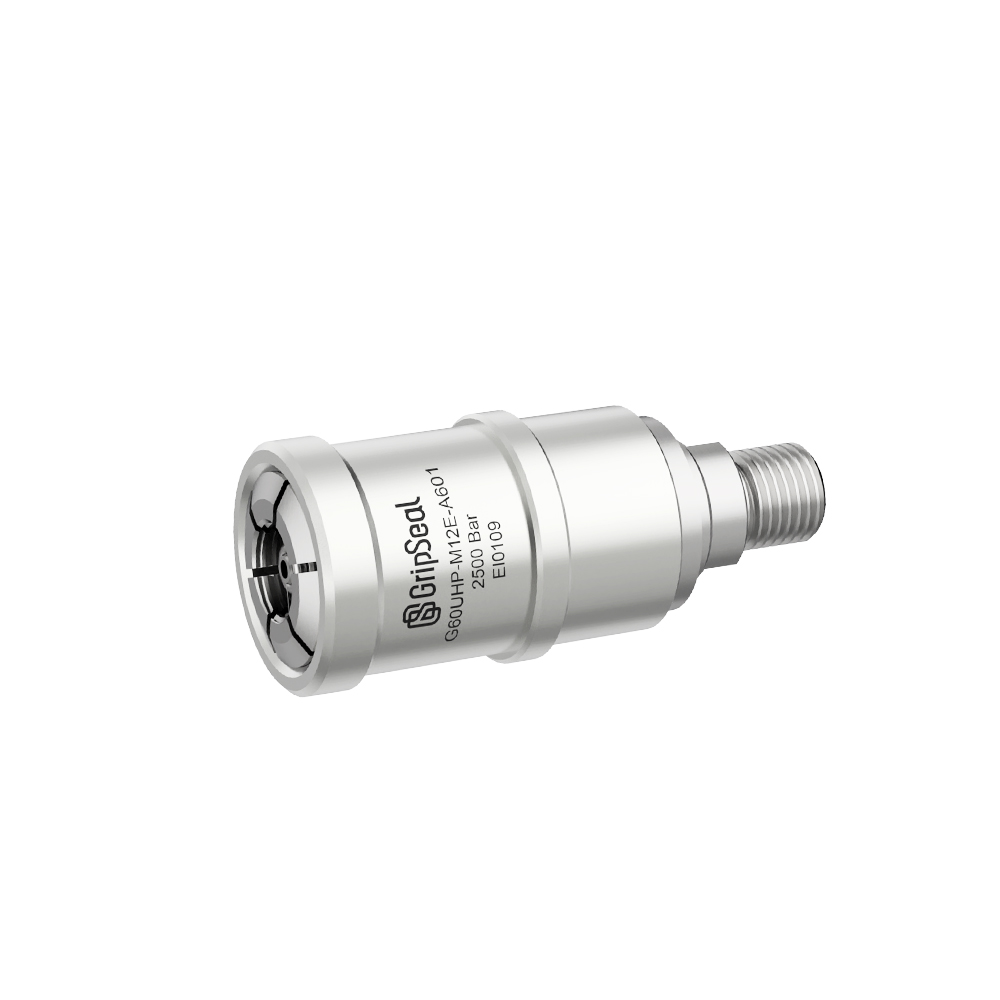

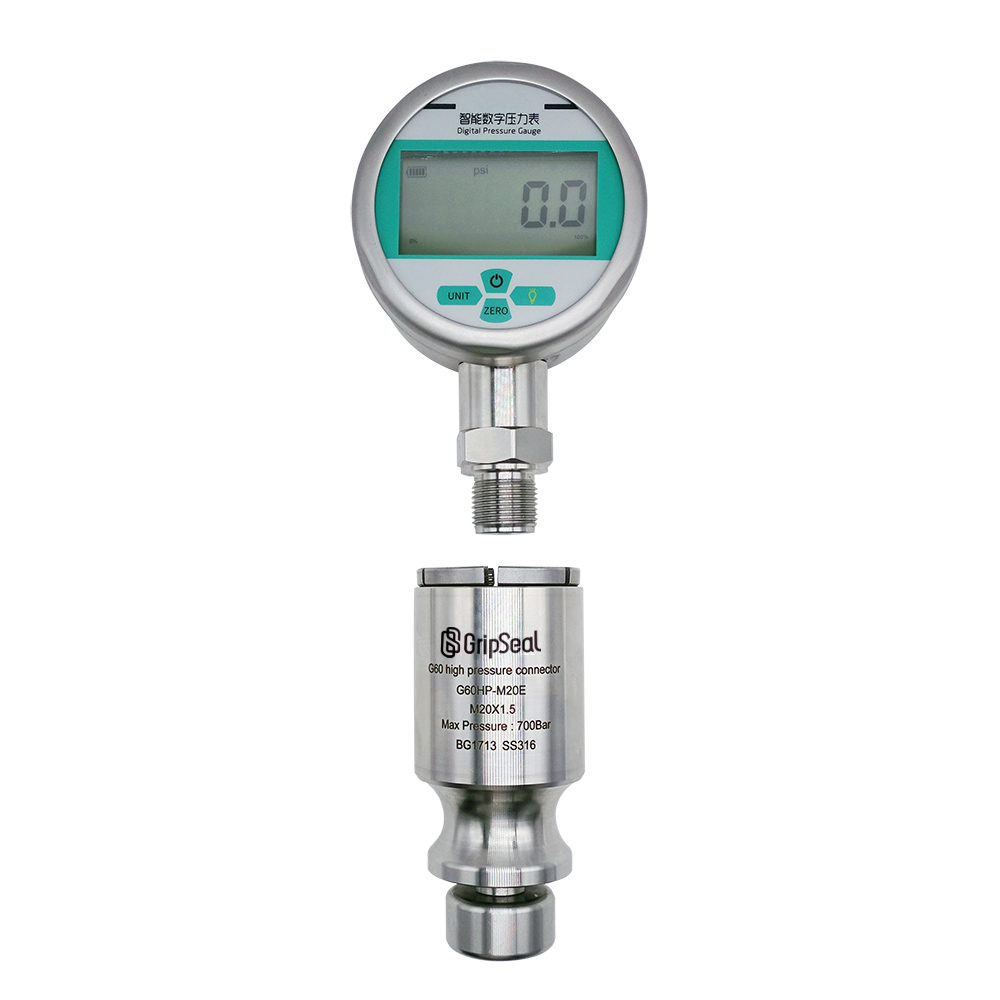

Ultimate high pressure connector

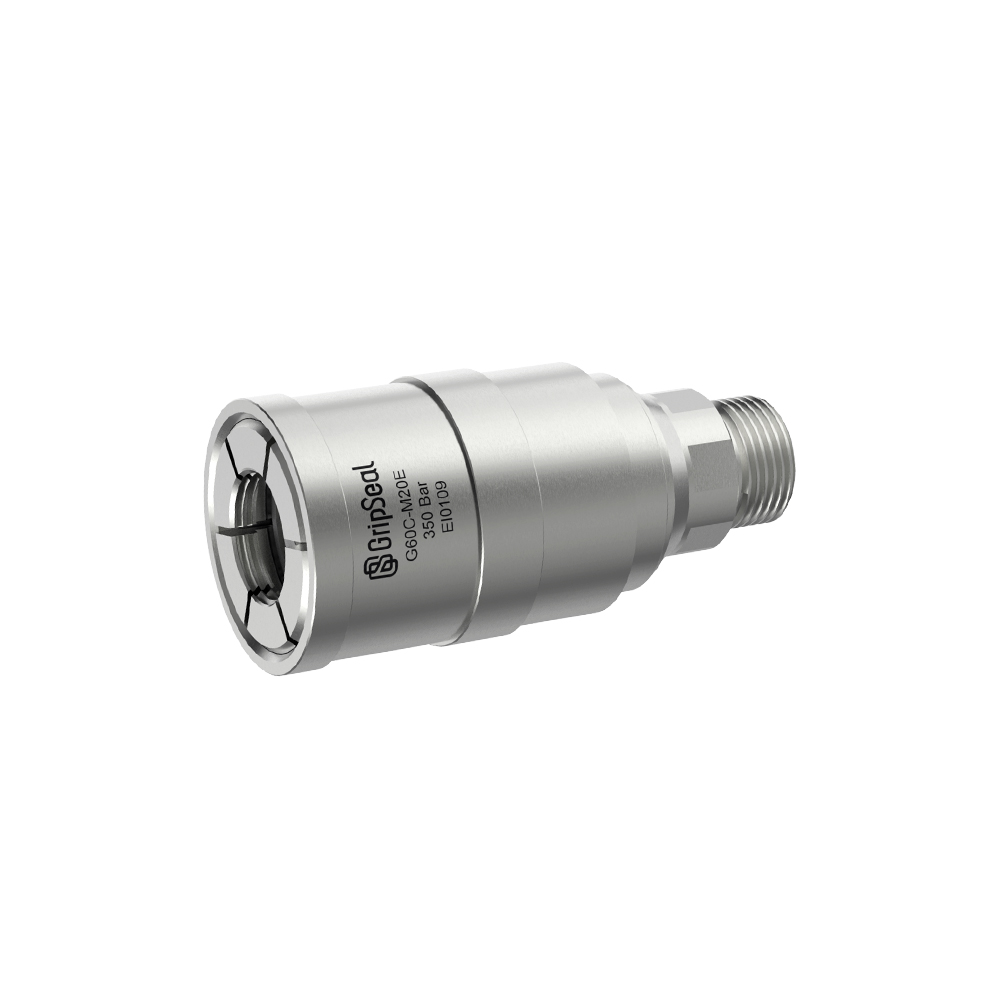

G60C connector (For Calibration Use)

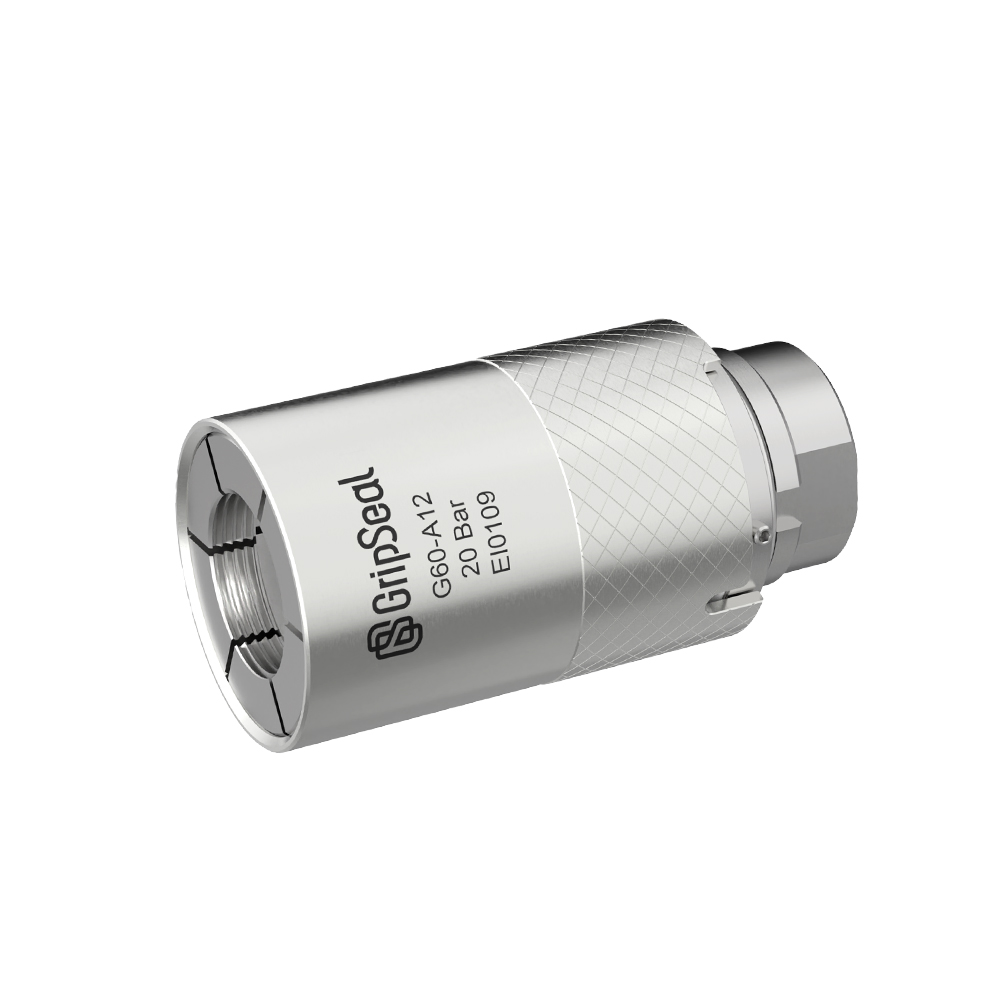

SAE45°specification sheet (with safety lock feature)

Model NO.	Dim A	Body No.	Dim B	Dim C	External thread D	Maximum pressure	Body material	Seals Material	Main Seals Package
G60-A04	-4(7/16-20)	2	25	75	G1/8	50 Bar	316 Stainless steel	Neoprene	SG60A04
G60-A06	-6(9/16-18)	4	40	80	G3/8	50 Bar			SG60A06
G60-A08	-8(3/4-16)	4	40	80	G3/8	50 Bar			SG60A08
G60-A10	-10(7/8-14)	6	45	90	G3/4	50 Bar			SG60A10
G60-A12	-12(1-1/16-12)	6	45	90	G3/4	50 Bar			SG60A12
G60-A14	-14(1-1/4-12)	7	50	90	G3/4	50 Bar			SG60A14
G60-A16	-16(1-3/8-12)	7	50	90	G3/4	50 Bar			SG60A16

Metric specification sheet(M)

Model NO.	Dim A	Body No.	Dim B	Dim C	External thread D	Maximum pressure	Body material	Seals Material	Main Seals Package
G60-M10	M10X1.0	2	25	75	G1/8	50 Bar	316 Stainless steel	Neoprene	SG60M10
G60-M12	M12X1.5	3	30	75	G1/4				SG60M12
G60-M14	M14X1.5	4	40	80	G3/8				SG60M14
G60-M16	M16X1.5	4	40	80	G3/8				SG60M16
G60-M18	M18X1.5	5	40	80	G1/2				SG60M18
G60-M20	M20X1.5	5	40	80	G1/2				SG60M20
G60-M22	M22X1.5	6	45	90	G3/4				SG60M22
G60-M24	M24X1.5	6	45	90	G3/4				SG60M24

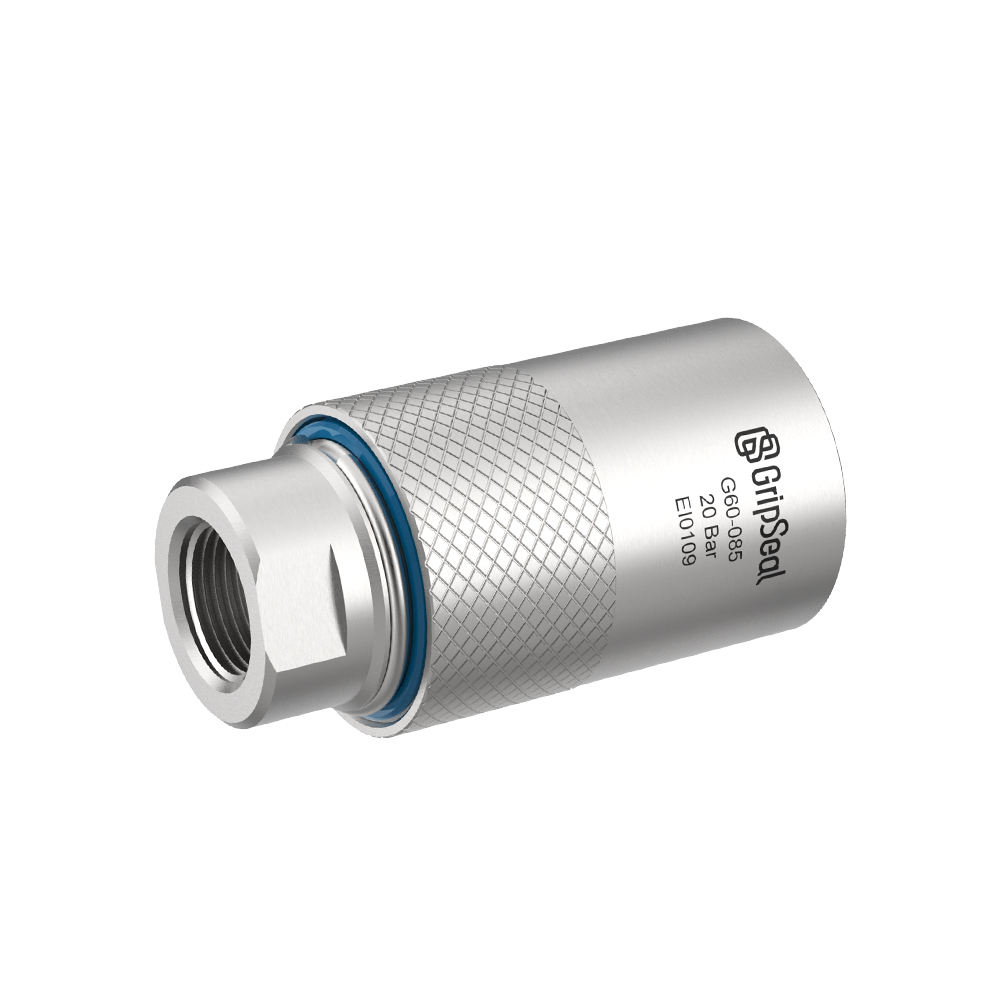

G/R thread specification sheet (For water heater use)

Model NO.	Dim A	Body No.	Dim B	Dim C	External thread D	Maximum pressure	Body material	Seals Material	Main Seals Package
G60-085	G1/2	5	40	80	G1/2	20 Bar	316 Stainless steel	Neoprene	SG60085
G60-085T	R1/2	5	40	80	G1/2				SG60085T
G60-125	G3/4	6	45	90	G3/4				SG60125
G60-125T	R3/4	6	45	90	G3/4				SG60125T
G60A-085	G(R)1/2	4	40	80	R1/2 external threaded				SG60A085
G60A-125	G(R)3/4	5	45	90	R3/4 external threaded				SG60A125
