G35 series connectors are a type of high pressure internal seal connectors, which are the optimal internal solution for sealing all kinds of copper, steel and aluminum tubes, widely applicable in refrigeration and new energy industries, such as heat exchangers, pressure vessels, instruments, meters, motor controller cooling panels, etc.

Self-locking high pressure internal connection solution

---

• Improving efficiency and reducing production costs
• Reliable sealing, long service life
• Light weight and efficient, reducing work intensity
• Self-locking structure, applicable to high pressure working environment

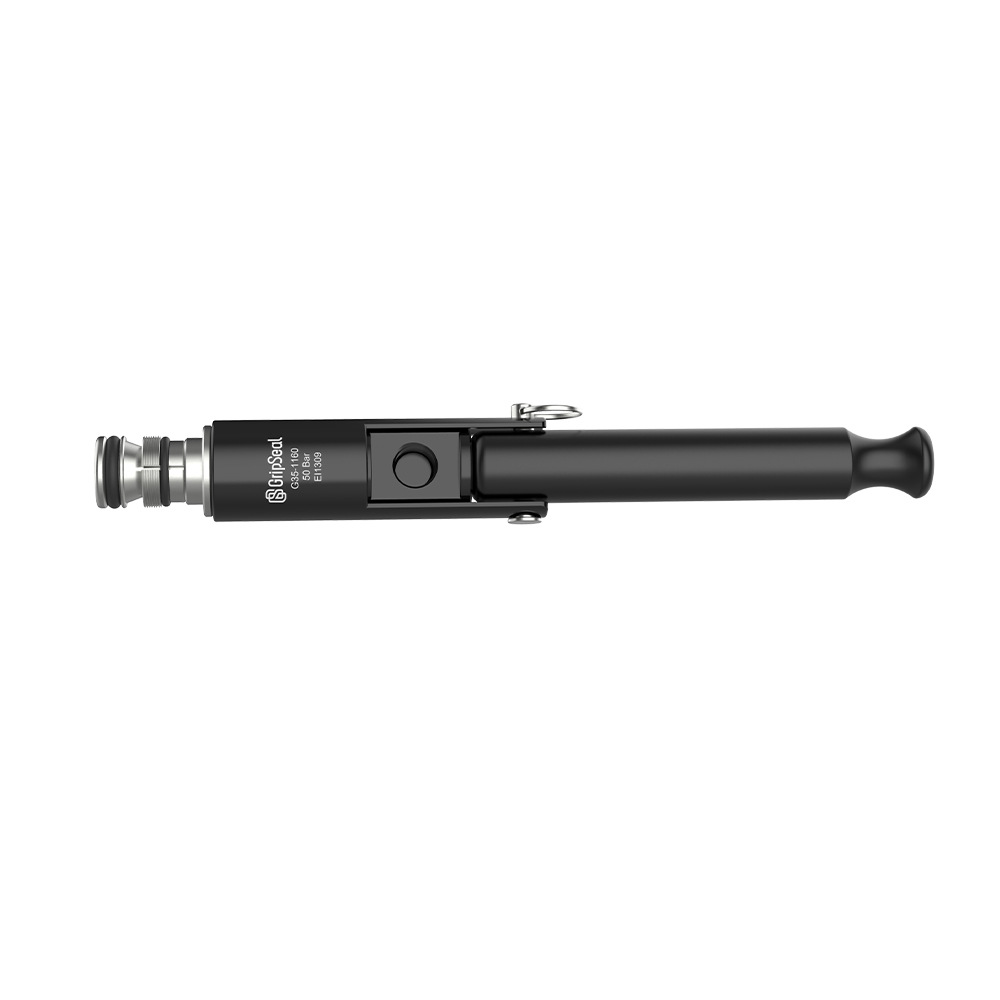

Features of G35 Series Connectors

• 1. Pressure-assisted Design

  The sealing force is strengthened with the increase of test pressure

• 2. Level actuated operation

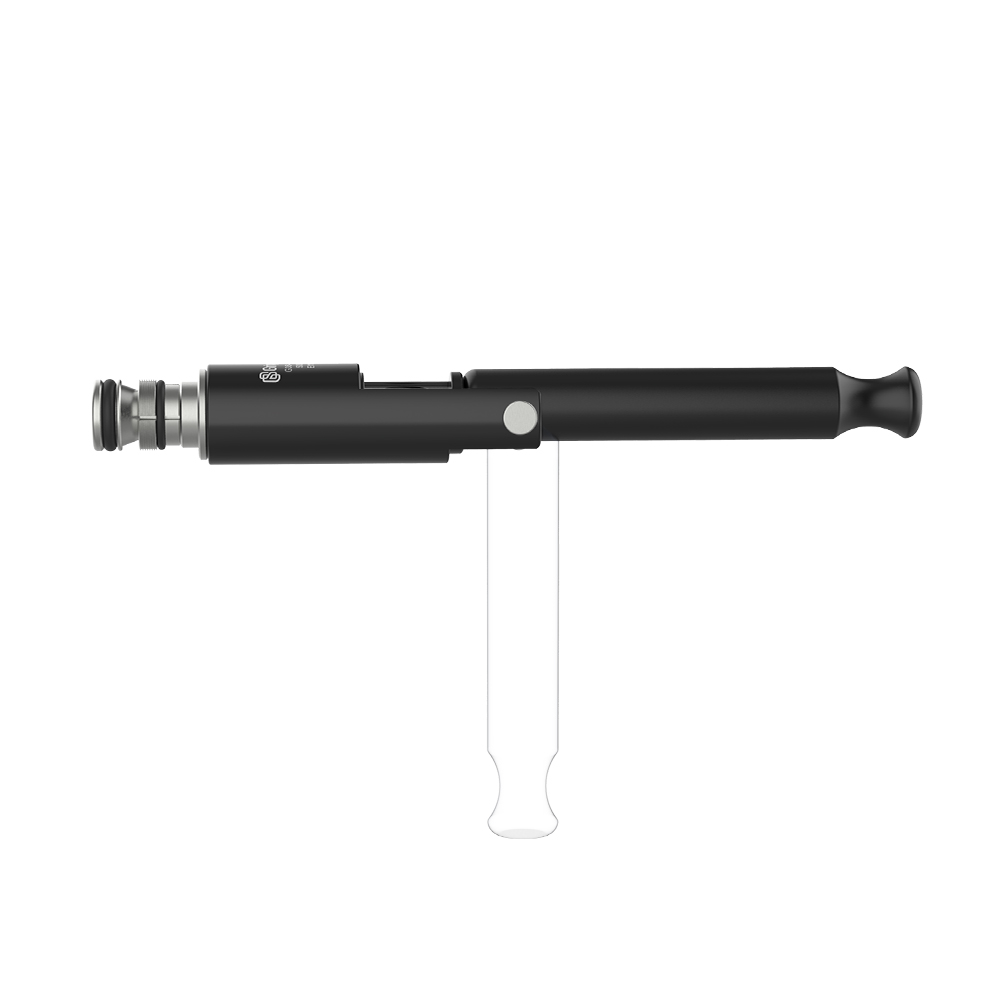

  The front seals of the connectors are inserted into the test holes, folding the handle by 90° to achieve a sealed connection

• 3. High Hardness Locking jaw

  The surface of the jaw is covered with engraved lines to increase the force area and provide higher clamping force,high hardness jaw can clamp stainless steel and mild steel

• 4. BSPP or BSPT termination port

  Standard BSPP 1/8 termination port, more suitable for international applications; BSPT thread can be applied to high pressure testing application, with better sealing performance

• 5. Easy disconnection

  Once the test air pressure is completely removed, the handle will be folded back to the original position and the sealing effect will disappear to achieve disconnection.

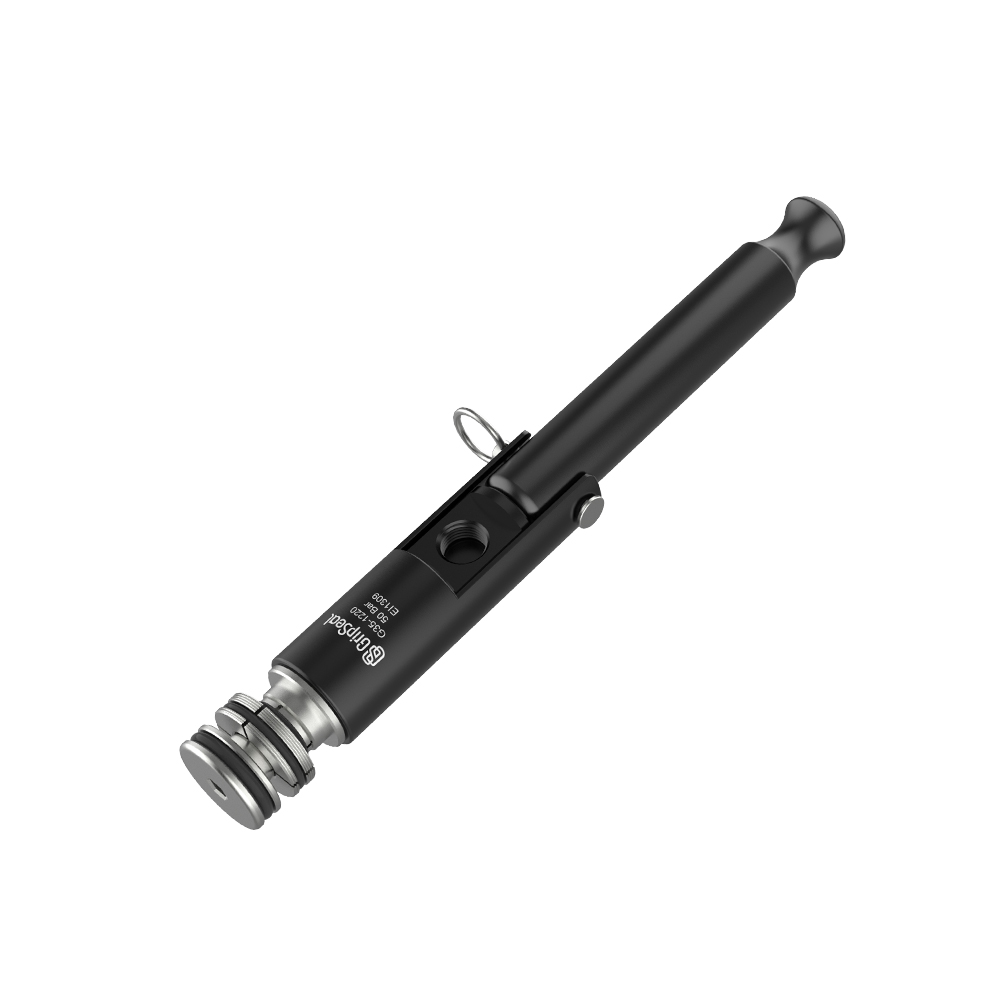

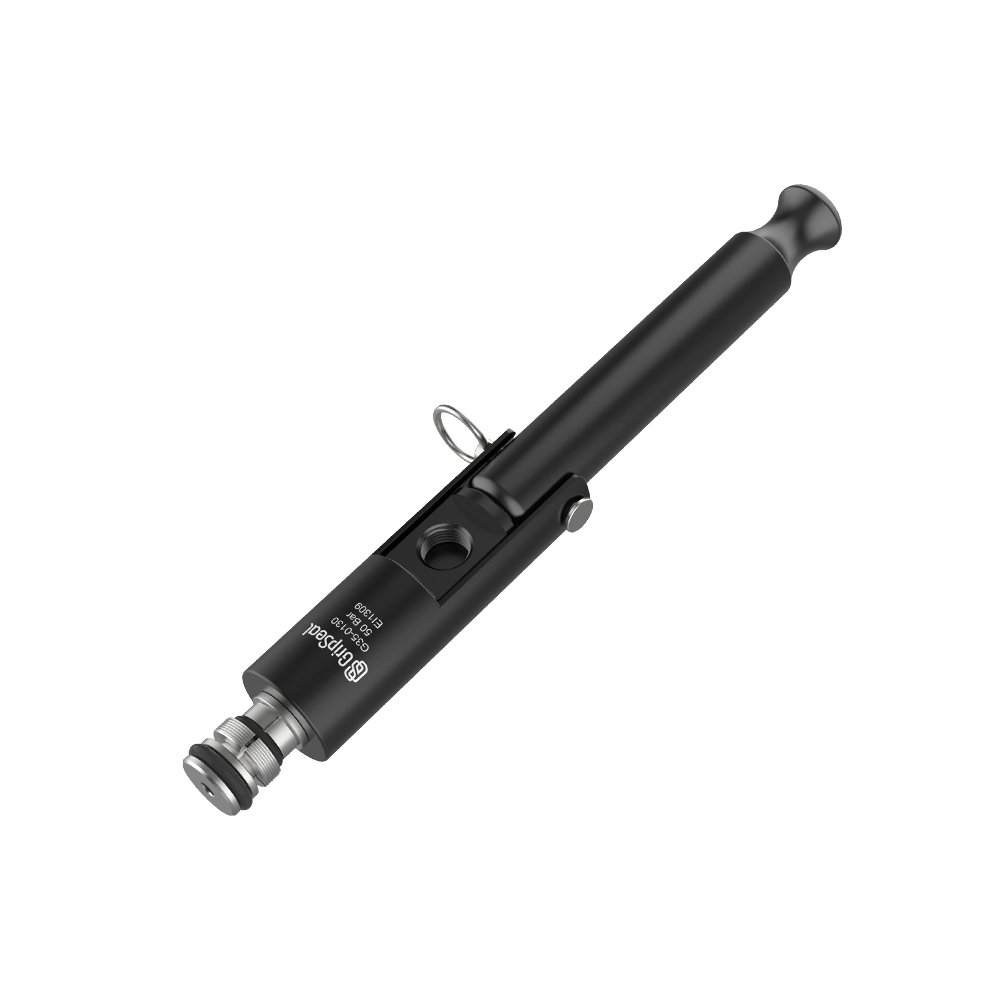

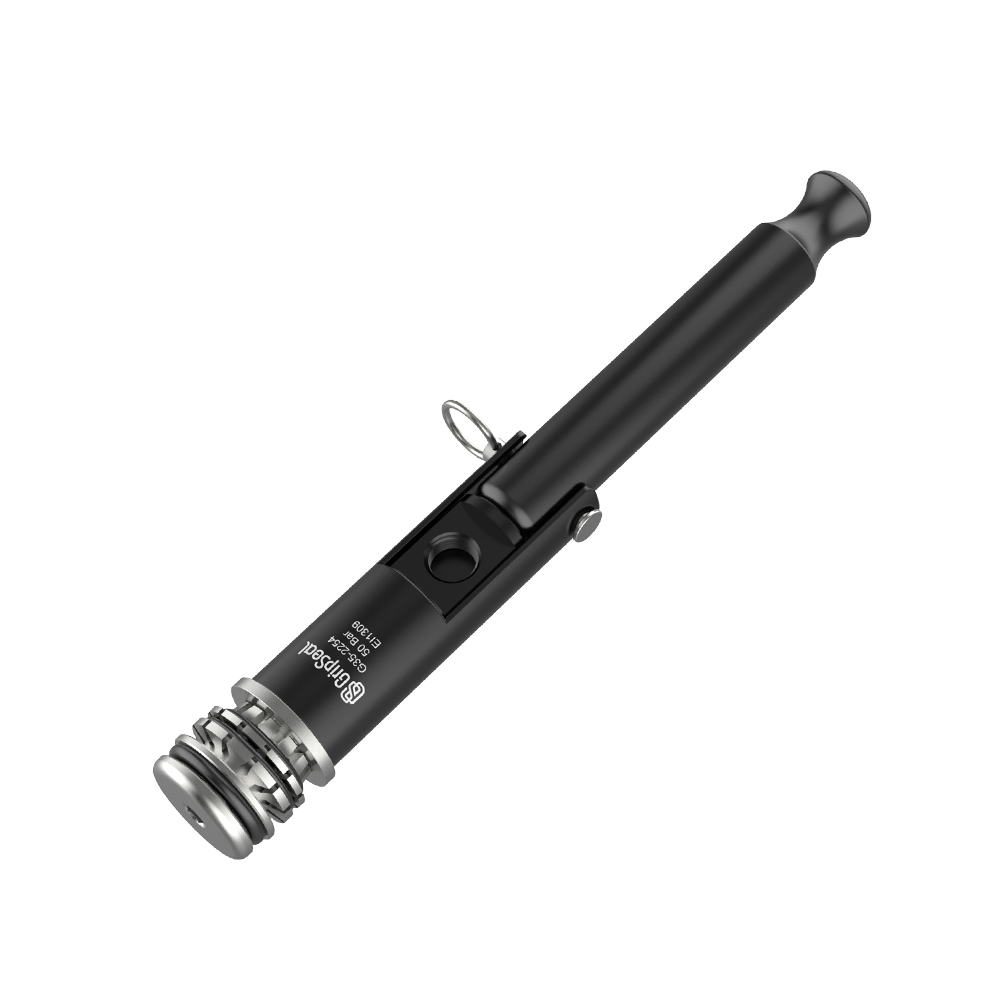

Dozens of standard models to accommodate pipe diameters from 9.52mm to 41.28mm, with other dimensions customizable up to 100mm

Features and advantages of G35 Series Quick Connectors

High Hardness Locking collets:Featuring locking collets that firmly clamp the outer wall of the tubing and increase the upper limit of test pressure

Locking jaws are covered with tiny stripes engraved line to increase the force area and provide a firmer grip.

Multi-point Sealing: Special jaw shape, multi-point contact provides more clamping force while reducing inner wall scratching

Aviation Aluminum & Nylon Handle:Light weight operation, reducing the work intensity of operators

BSPT termination port: In line with International standards, commonly adopted, related accessories are easily available

The specification and parameters of G35 connectors

Max operation pressure	From Vacuum to 50 Bar or 70 Bar
Sealing range	10mm ~ 100mm
Minimizeinsert depth	BG0, BG1: 12mm BG2: 23mm
Termination port	G1/8 thread hole or ZG1/8 thread hole
Body material	Aluminum alloy, Stainless steel, Nylon
Main seal	Buna-N
Internal seal	Buna-N
Operation temperature	-20°C-120°C

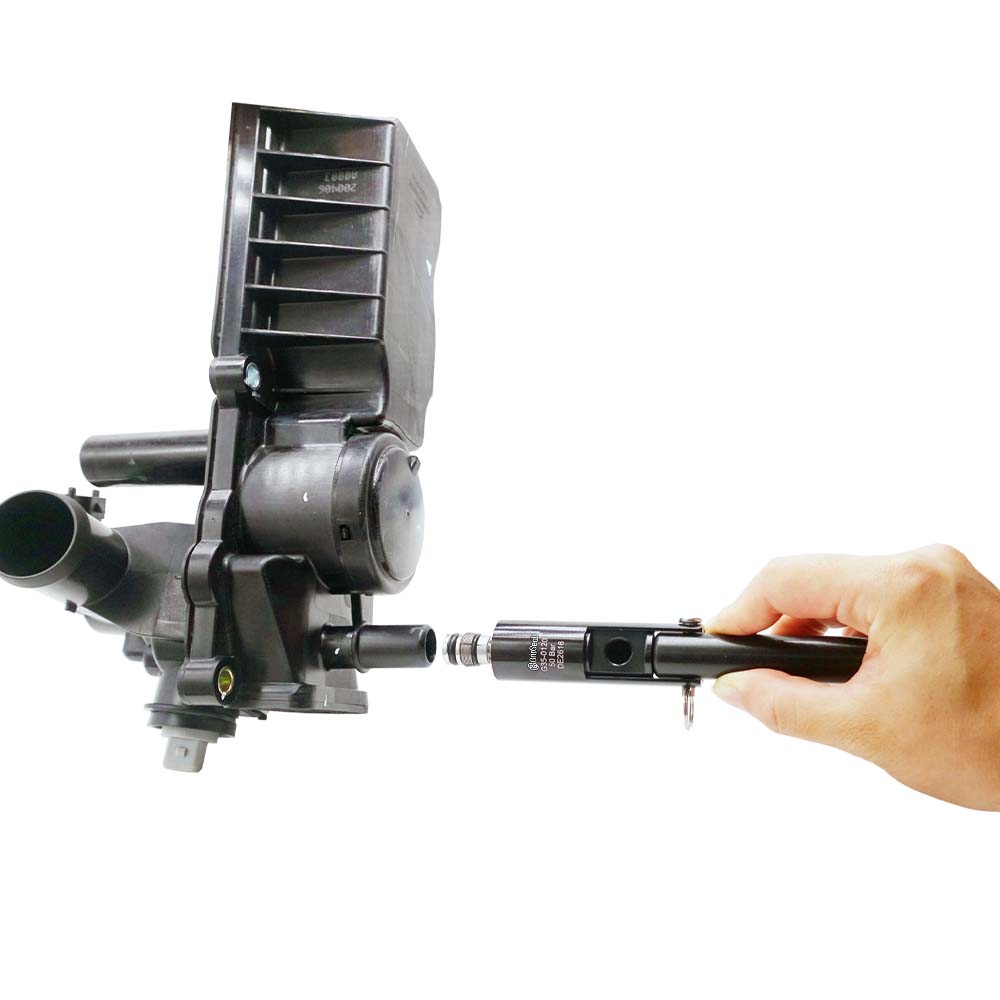

Make connection easier

Aligning the connector to the interior of the tubing

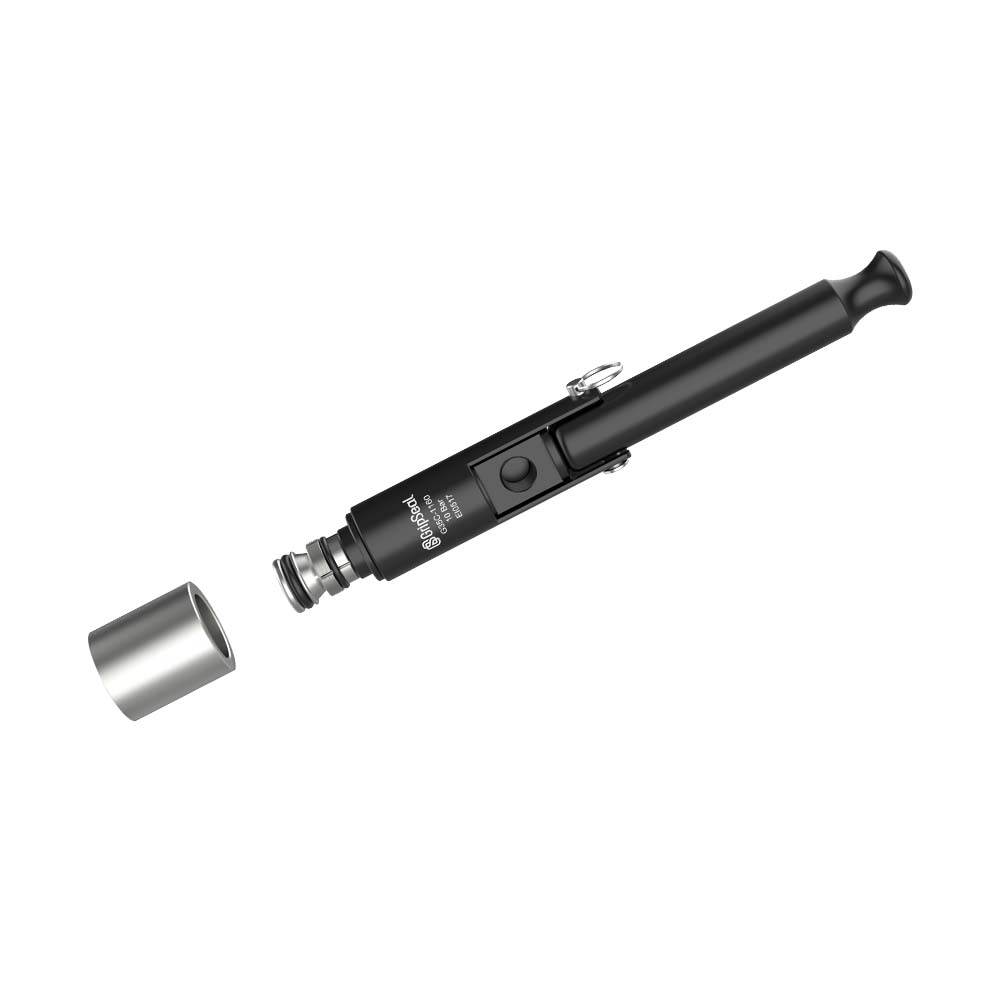

Inserting the connector into the tubing

Folding the handle, and the test piece is locked by the connector jaw to complete the sealing

Application case

Metric size

Inch size

Customsized Size

Note: *The maximum pressure is dependent on the material of the tubing, with a maximum pressure up to 70 Bar.
