G25A series quick connectors represent an internal quick connectors, which mainly seal a wide variety of internal bores and pipe. The sealing surface can produce an effective seal regardless of whether it is a machined surface or cast surface. This series of connectors can provide reliable connection under low working pressure (less than 3bar)

Low cost internal connection solution

---

• Low pressure connectors,easy operation
• Instantaneous connection, handle operation, simple and reliable
• Various Sealing material, durable and reliable, non damage to product surface
• Simple structure, replaceable seals, with extended connection service life

Features of G25A series quick connectors

• 1. Adaptive Sealing by internal Spring

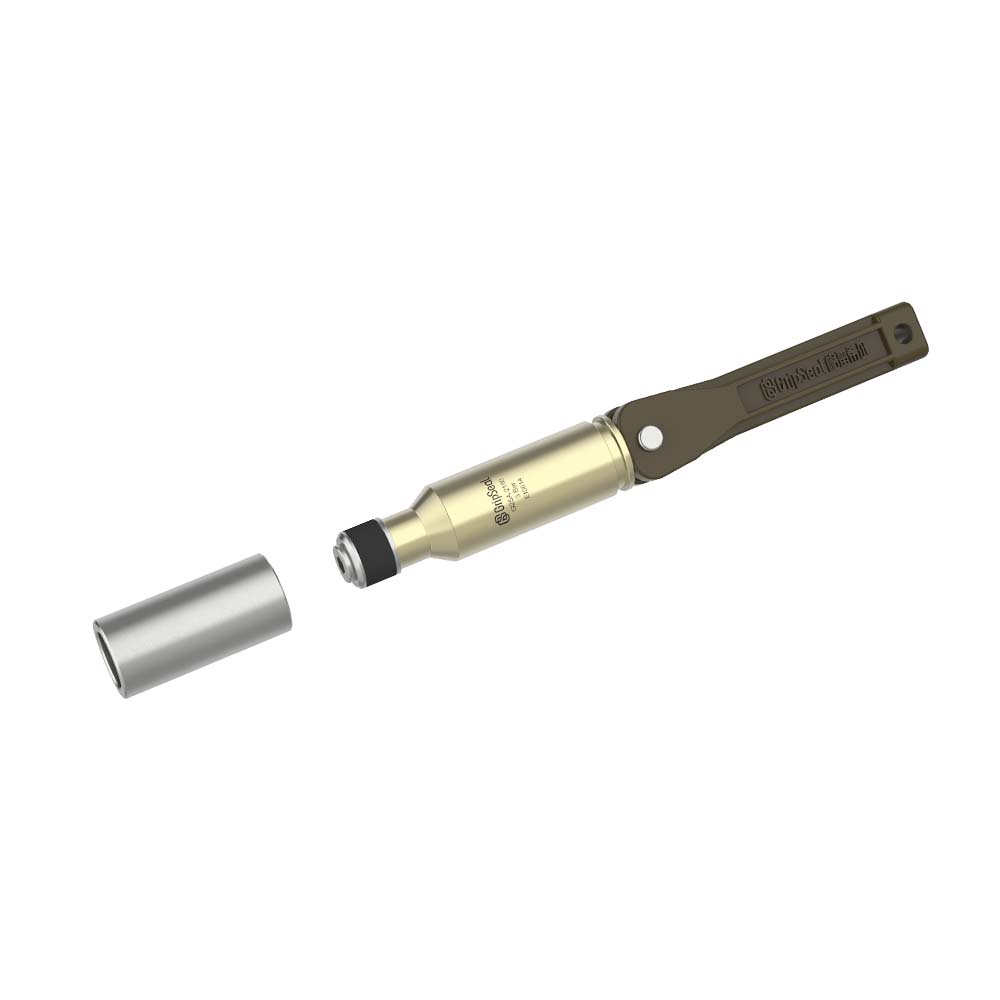

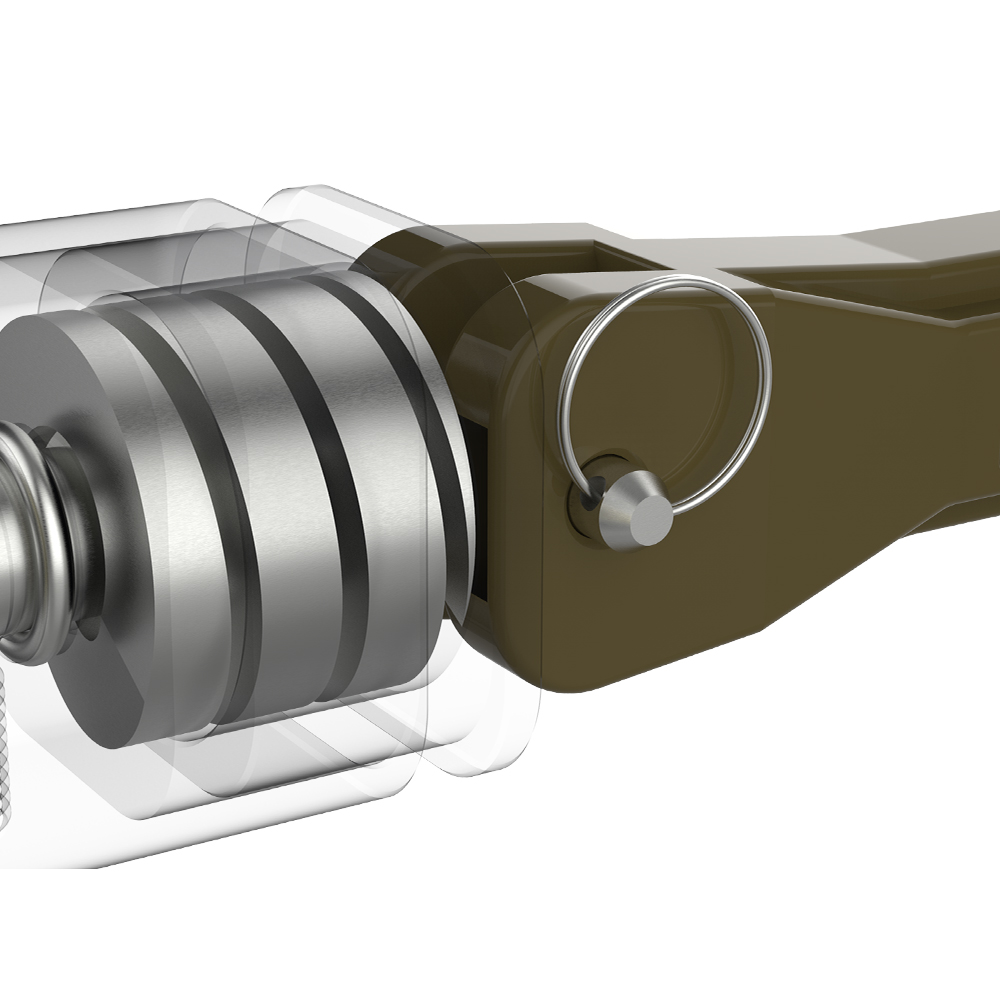

  The internal spring of the connector compresses the front seal, allowing the connector to automatically adjust the compression amount in accordance with the internal diameter of test piece to ensure sealing

• 2. Level actuated operation

  The front seal of the connectors are inserted into the test holes with 90 degrees folding handles to achieve a sealed connection

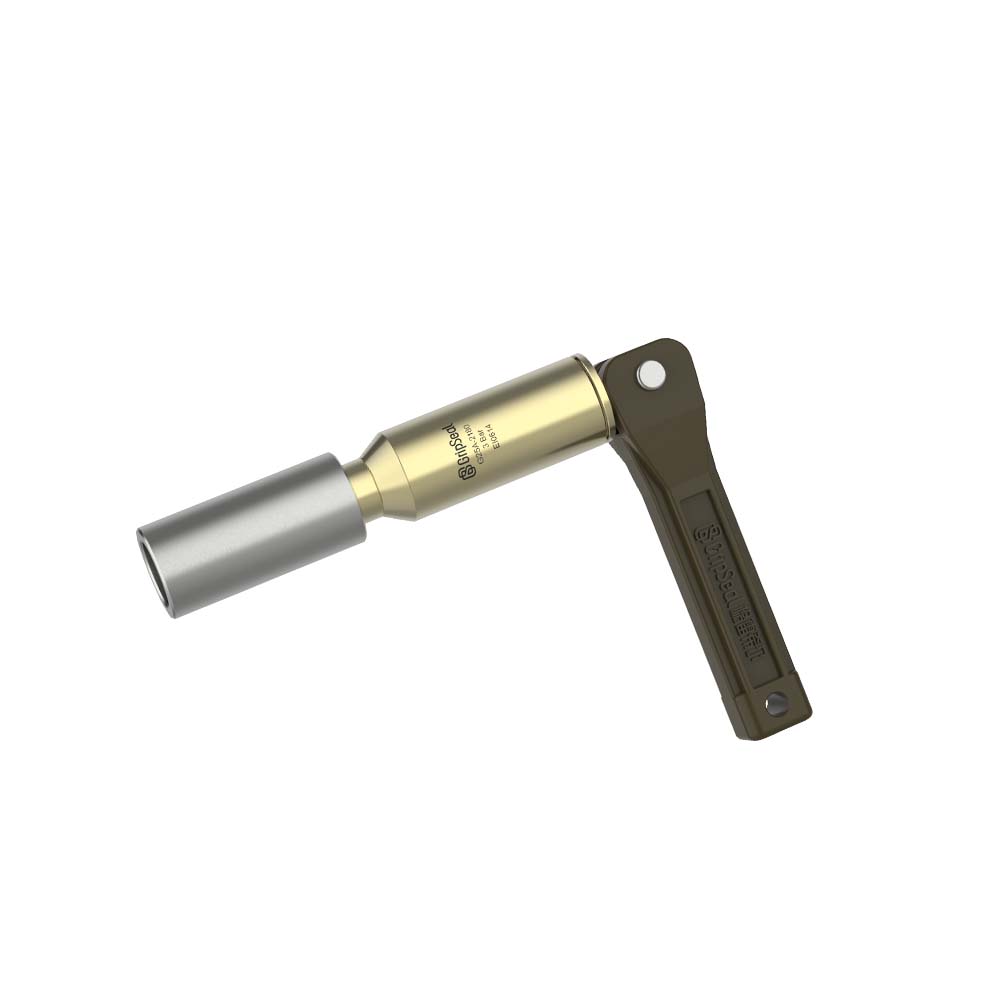

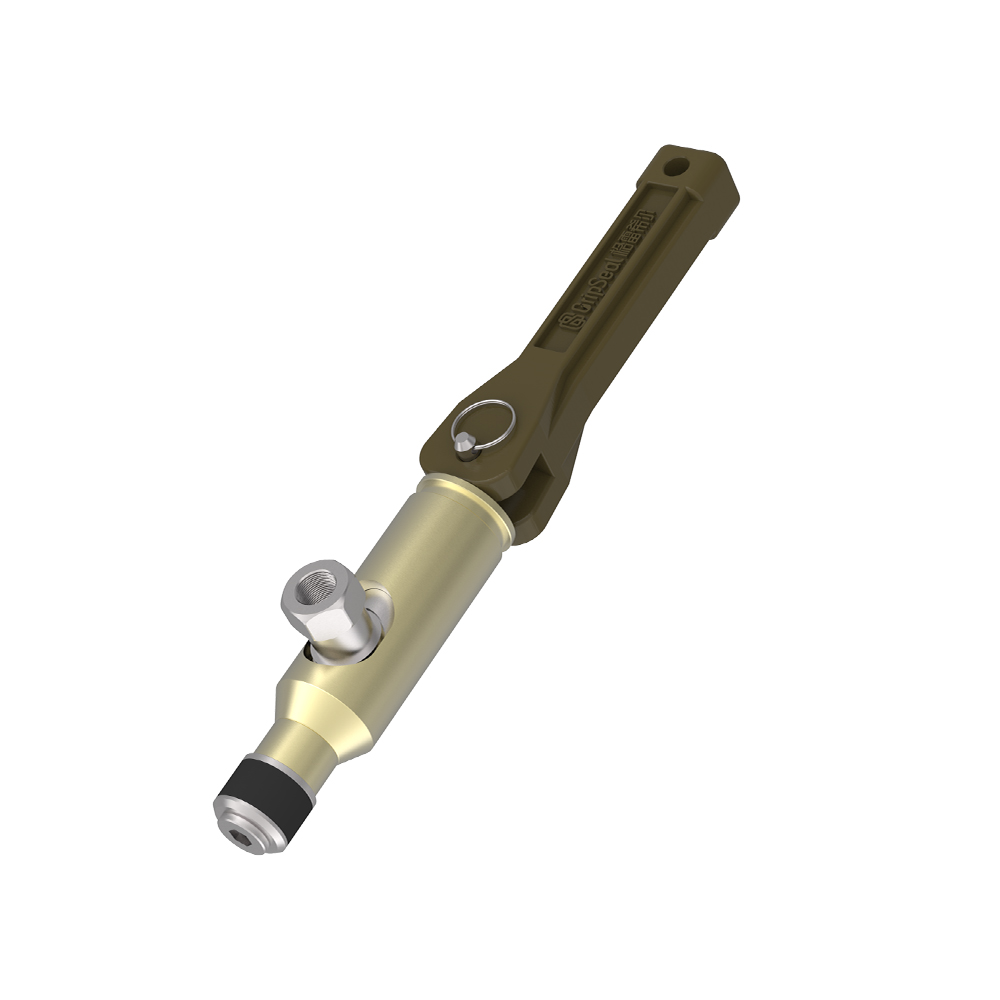

• 3. BSPP Threaded Test Port

  BSPP 1/8 threaded termination port, more adaptable to EU and other countries.

• 4. Easy disconnection

  After release the internal work pressure, the handle will be folded back to the original position and the sealing effect will disappear to achieve disconnection.

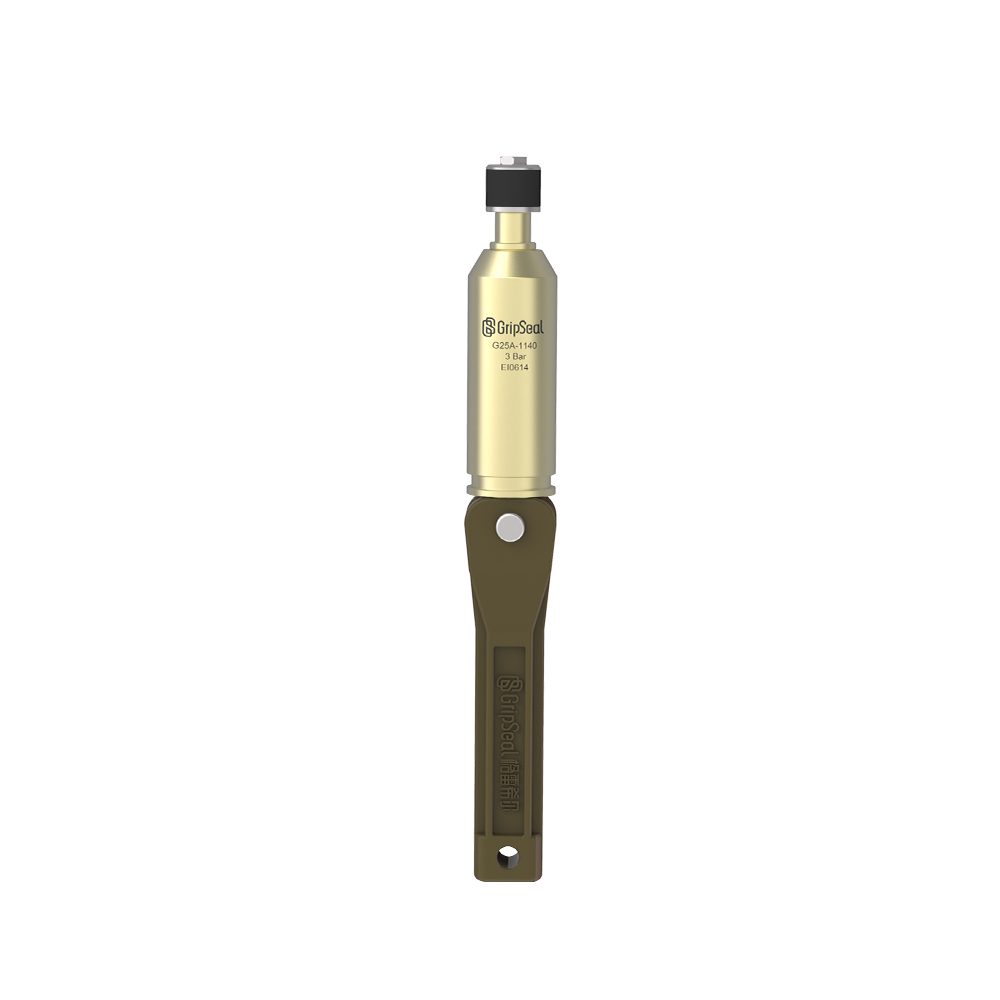

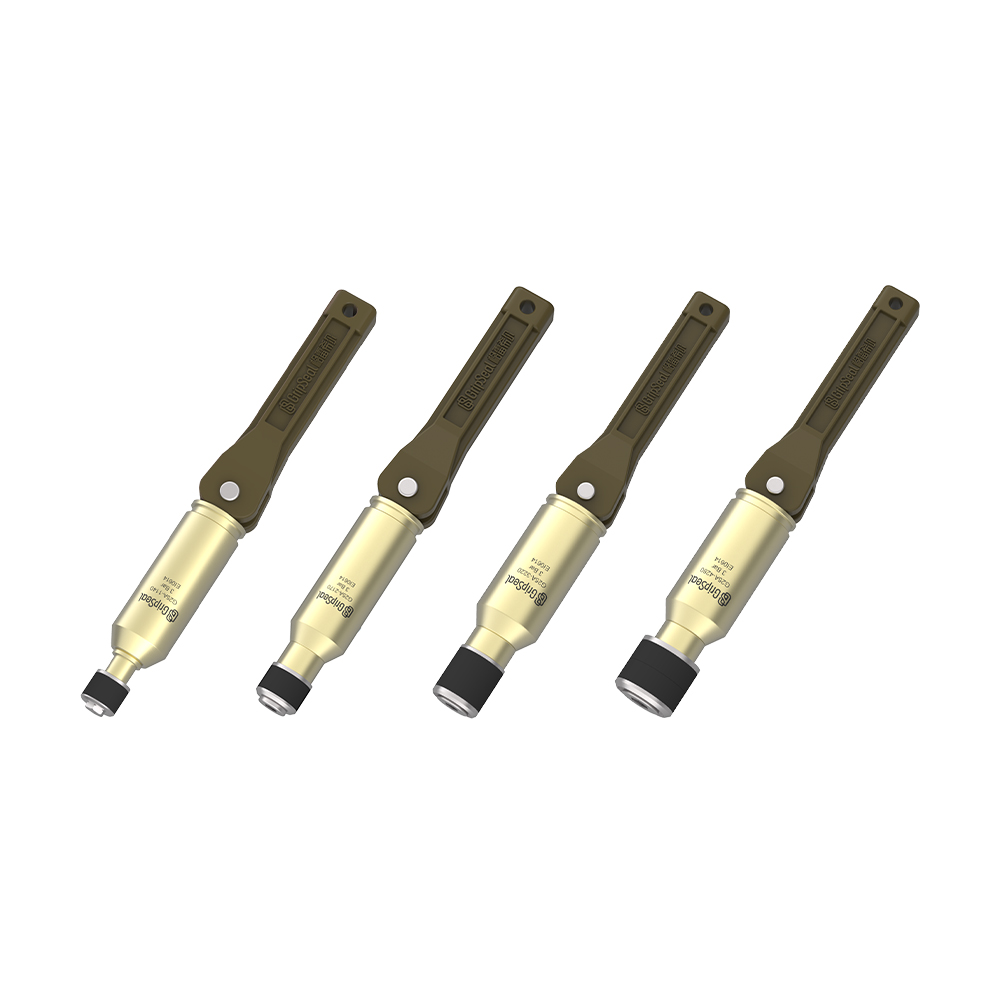

4 types of subjects to accommodate sealing performance of pipe diameters ranging from 10mm-36mm.

Display

The G25A series is a low-pressure internal seal connector that is designed for ease of use, adjustment available and easy maintenance. By folding the handle on the rear of the connector,the seal can be compressed to quickly form a sealed connection. The built-in adaptive high-strength spring applies a consistant compression force to the seal, to ensure a reliable connector sunder wider tolerance or slightly worn seals condition. Moreover,the G25A series offers convenient maintenance with common tools for disassembly and parts replacement.

Easy to handle

Advantages and Features of G25A Internal Connectors

Adaptive Spring: Automatic adjustment of seal in accordance with bore diameter for longer service life

Seals Materials: Materials are optional to meet specific customer needs,.

Rapid seal Replacement: No special tools required on maintenance

Nylon Handle: Ergonomic design, reducing the labor intensity of operators

In line with international standards, commonly adopted international and relevant accessories are easily available

The Specifications and parameters of G25A connectors

Max operation pressure	From Vacuum to 3 Bar
Sealing range	10mm ~ 34mm
Minimizeinsert depth	BG1, BG2: 15mm BG3, BG4: 30mm
Termination port	G1/8 thread hole
Material of main body	Aluminum alloy
Main seal	Neoprene/silicone
Internal seal	Buna-N
Operation temperature	-20°C-120°C
Handle	nylon

Application case:

Engine Waterway Test New energy battery Water-cooling plate test Battery package testing Electric Motor controller Leak test

Engine

New energy battery PACK

Electric Motor controller

Threaded Application

Straight Tube Application

Note:
1. The depth of the bore must be sufficient to fit the seal at the front of the connector
2. The main seal package contains materials that can be replaced up to 5 times
