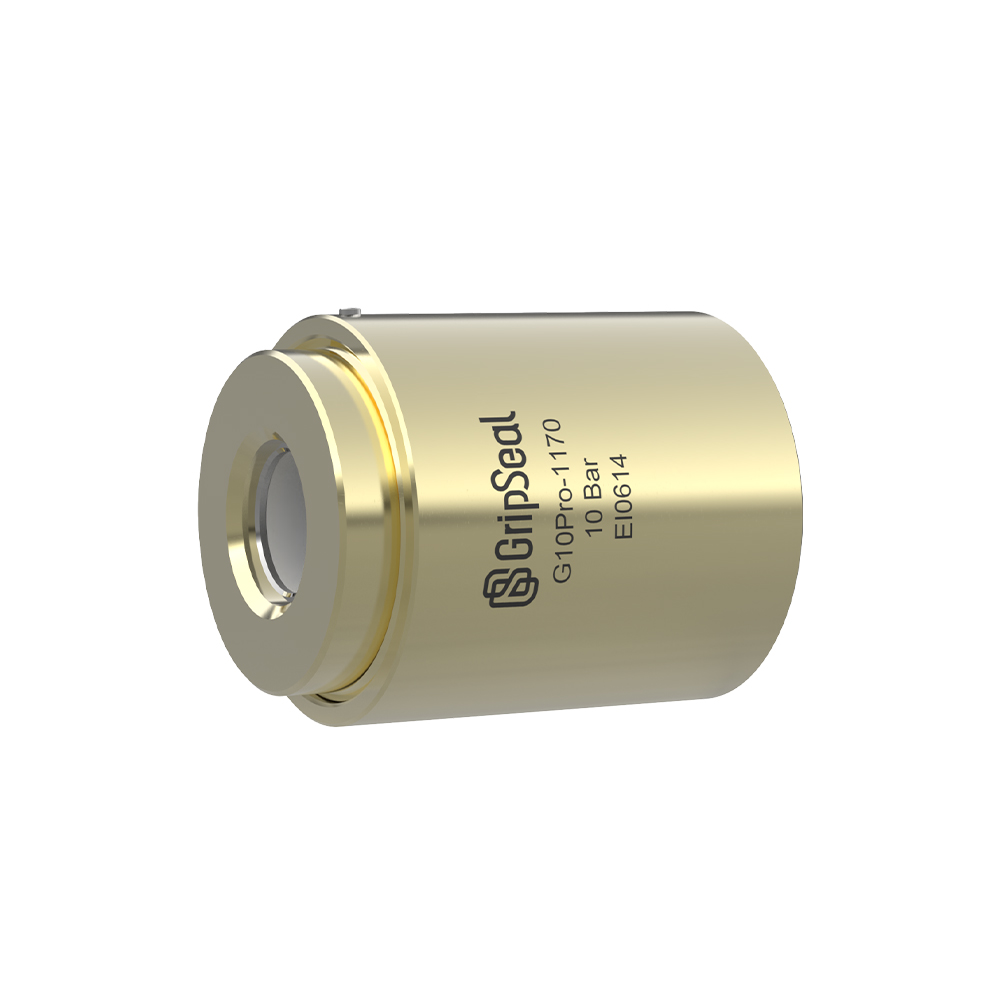

In comparison to the traditional G10 series connectors, G10 Pro series can be mounted externally with a magnetic sensor, which enables more accurate tracking of the connector drive, seal expansion, eliminating incorrect connections resulted from improper sealing, and enhancing the efficiency of automated inspection
Verify whether the connection good or not by setting the position of the sensor
Real-time feedback regarding the movement of the internal piston
Allowing flexibility in clamping position to avoid interference
No operating space needed, which can be positioned anywhere in the fixture

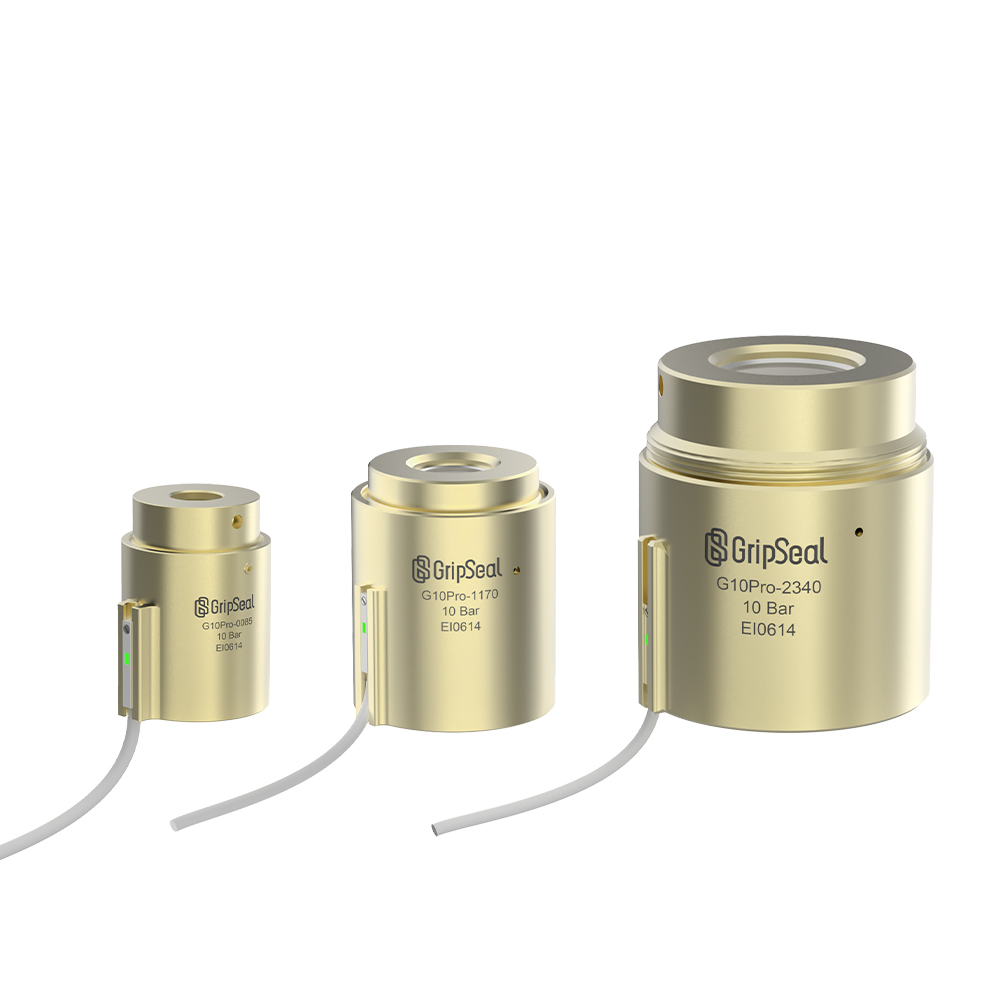

G10 Pro series quick connectors range from A to BG3, which can accommodate OD from 0.76mm to 50mm
Dispaly

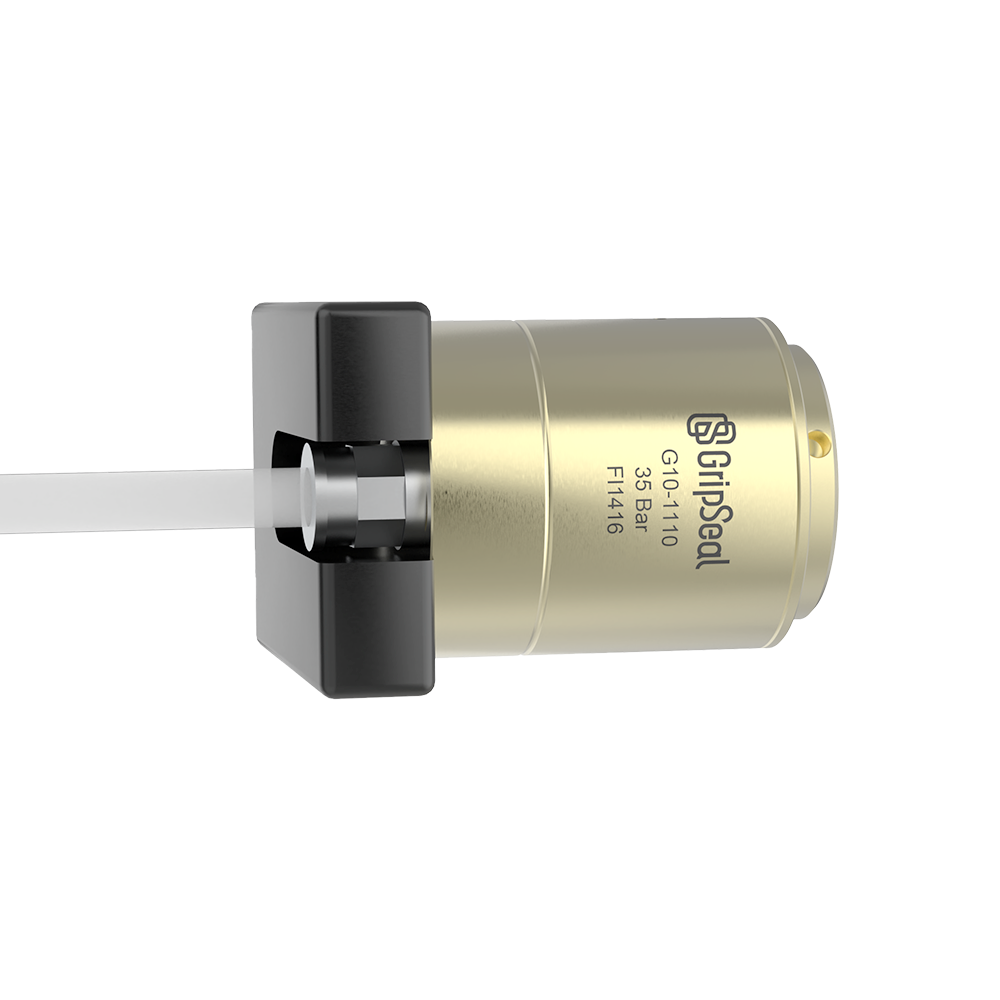

Non-destructive connection

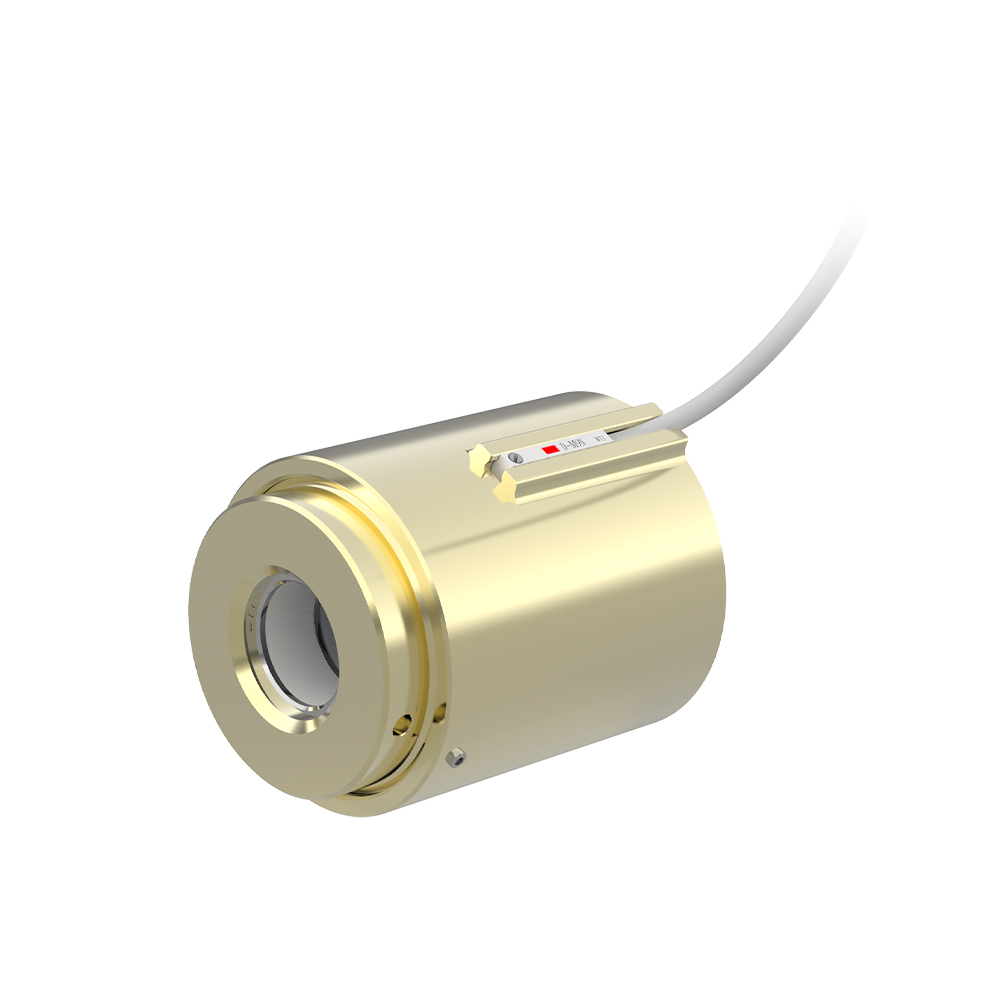

Position Sensor: Real-time feedback regarding the movement of the internal piston

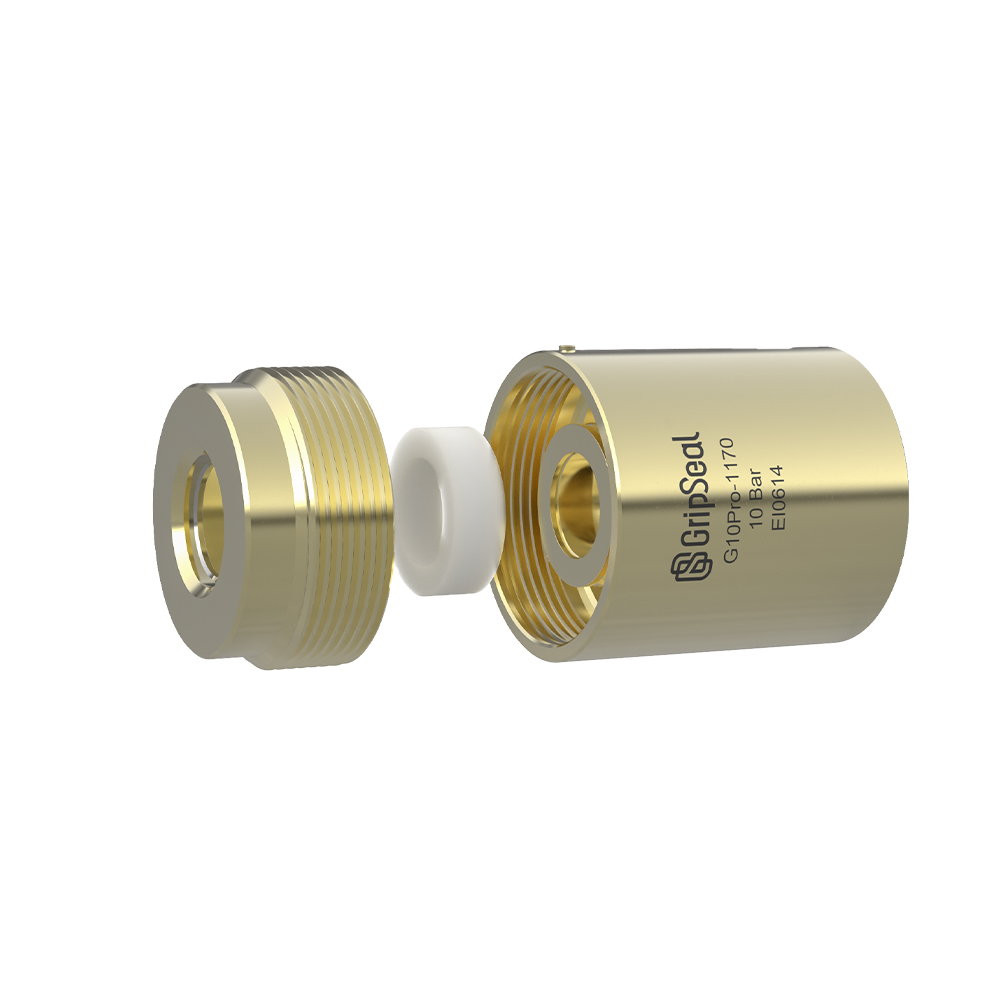

Quick Seals: Replacement:Simple maintenance & extended service life
Seals Materials: Materials are optional to meet specific customer needs,easy maintenance and extended service life
Automatic Operation: Higher efficiency & more consistent test results
| Max operation pressure | From Vacuum to 35 Bar |
| Sealing range | Refer to specification sheet |
| Minimizeinsert depth | BG1, BG2: 15mm BG3, BG4: 33mm |
| Termination port | G1/8, G1/4, G1/2 thread hole |
| Material of main body | Aluminum alloy or stainless steel |
| Main seal | Neoprene/silicone |
| Internal seal | Buna-N |
| Pilot pressure | 4-6 Bar |
| Operation temperature | -20°C-120°C |
The G10 Pro series creates a leak-free external connection for a variety of fittings by applying the pneumatic driven piston to compress the internal sealing ring. G10 Pro connectors are ideal for leakage testing and functional testing.
G10Pro specification sheet (Aluminium alloy version)
| Model NO. | Sealing Range | Dim A | Dim B | Dim C | Dim D | Dim E | Dim F | Dim G | Dim L | Main Seals Package |
| G10PRO-0025 | 2.5-4.5 | 53.6 | 41 | G1/8 | M5 | 27.6 | 13.8 | M5 | 8.75 | SG100025 |
| G10PRO-0045 | 4.5-6.5 | SG100045 | ||||||||
| G10PRO-0065 | 6.5-8.5 | SG100065 | ||||||||
| G10PRO-0085 | 8.5-9.5 | SG100085 | ||||||||
| G10PRO-0095 | 9.5-10.5 | SG100095 | ||||||||
| G10PRO-0105 | 11.5-12.5 | SG100105 | ||||||||
| G10PRO-1110 | 11-13 | 68.4 | 60 | G1/4 | G1/8 | 41.2 | 20 | M5 | 8.2 | SG101110 |
| G10PRO-1130 | 13-15 | SG101130 | ||||||||
| G10PRO-1150 | 15-17 | SG101150 | ||||||||
| G10PRO-1170 | 17-19 | SG101170 | ||||||||
| G10PRO-1190 | 19-20 | SG101190 | ||||||||
| G10PRO-2200 | 20-22 | 91.4 | 83 | G1/2 | G1/8 | 63.5 | 31.7 | M6 | 19.6 | SG102200 |
| G10PRO-2220 | 22-24 | SG102220 | ||||||||
| G10PRO-2240 | 24-26 | SG102240 | ||||||||
| G10PRO-2260 | 26-28 | SG102260 | ||||||||
| G10PRO-2280 | 28-30 | SG102280 | ||||||||
| G10PRO-2300 | 30-32 | SG102300 | ||||||||
| G10PRO-2320 | 32-34 | SG102320 | ||||||||
| G10PRO-2340 | 34-36 | SG102340 | ||||||||
| G10PRO-2360 | 36-38 | SG102360 |
1. G10 Pro quick connector customized models include: larger outer diameter dimensions, shaft extension, shorter sealing length, etc.
2. Customized models of G10 quick connectors include: sealing various threads, non-circular shapes, with snap mechanism, multiple connector combinations, etc. Please contact your local distributor or GripSeal sales representative for more information.
